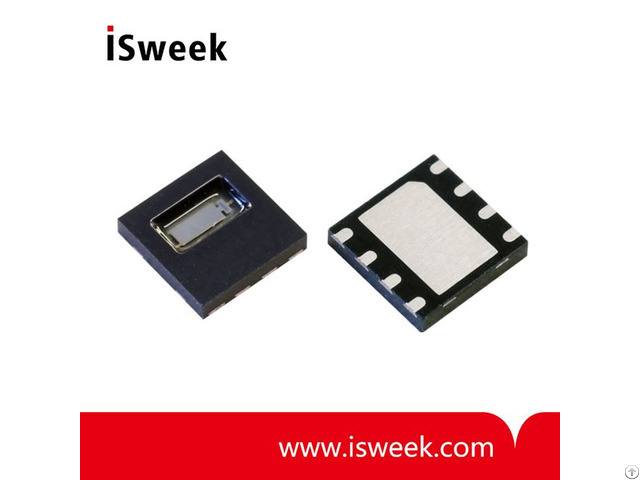

HCT01 Humidity and Temperature Sensor Description

HCT01 humidity/temperature sensors combine high quality, long time approved thin-film sensor technology simple processability and the possibility of a cost-efficient integration into customer application.

/

The pre-adjusted capacitive E+E humidity sensorelement saves complicated and time-consuming humidity adjustment.

Highly accurate thin-film elements are used for the temperature measurement – a must for precise dew point determination.

The DFN packaging guarantees maximum mechanical sensor protection and enables reflow soldering.

A protective film on the surface of the humidity sensor ensures extensive protection against contamination like dust, salt or chemical deposit.

/

Depending on the individual application, accuracy requirements and existing interface electronics, different cost-saving evaluation circuitries are available.

Do not hesitate to contact our specialists for further information and design-in support.

/

HCT01 Humidity and Temperature Sensor Features

• RH and T sensor in one package

• RH adjusted

• Mature humidity sensor technology

• High temperature accuracy

• Reflow solderable

• Integrated dust filter

• Standardized DFN package

/

HCT01 Humidity and Temperature Sensor Technical Data

• Nominal capacitance: 70 pF

• Sensitivity: 0.25 pF /% RH

• Working Humidity range: 0.100% RH

• Working Temperature range: -40.140°C (-40.284°F)

• Hysteresis: < 1.85%

• Respons time t63: ≤ 6s

• Maximum DC voltage: < 0.3V
