HDI PCB Manufacturer in China

Multilayer HDI PCB

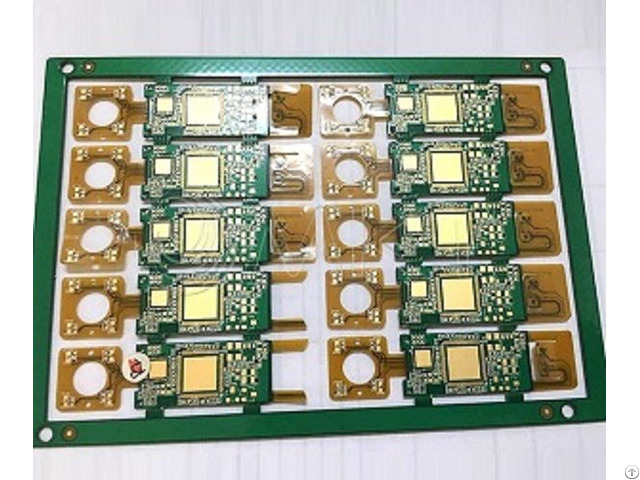

Flexible-Rigid PCB

Layer Count/Technology 4-20 layers 4-20layers

PCB Thickness Range 0.5-2.4MM 0.4-2.4MM

Build Up Technology 1-N-1 / 2-N-2 / 3-N-3 / 4-N-4 1-N-1 / 2-N-2 / 3-N-3 / 4-N-4 / 5-N-5 / 6-N-6 / 7-N-7

Min.

Laser Drill Diameter 110μm 75μm

Laser Techlology CO2 Direct Drilling(UV/CO2) CO2 Direct Drilling(UV/CO2)

Materials FR4/FR4 Halogen Reduced FR4 / Taconic / Rogers / Others on request

Class Transition Temperature 140℃ / 150℃ / 170℃ 140℃ / 150℃ / 170℃ / 200℃

Standard Glass Cloth 1027/106 / 1080/2116 / 1501/7628 1037/106 / 1080/2116 / 1501/7628 / 1027/

Copper Thickness 12μm/18μm/35μm/70μm 9μm/12μm/18μm/35μm/70 μm/105μm

Copper Plating Holes 20μm(25μm) 13μm / 20μm / 25μm

Min.

Line/ Spacing 60μm / 60μm 40μm / 40μm

Soldermask Registration 70μm 60μm

Min.

Soldermask Dam +/-38μmPhoto-imageable) +/- 25μm(Photo-imageable)


Soldermask Color Green / White / Black / Red / Blue Green /White / Black / Red / Blue

Max.

PCB Size 575mm × 500mm 575mm × 500mm

Production Panel 609.6mm × 530mm 609.6mm × 530mm

Min.

Annular Ring 125μm 100μm

Smallest Drill 0.28mm 0.15mm

Smallest Routing Bit 0.8mm 0.8mm

Surfaces OSP/Immersion Tin OSP/Immersion Tin

Immersion NI/AU Immersion NI/AU Plated Ni/AU Plated Ni/AU immersion AG immersion AG Scoring Yes Yes

ID Print White White

MKTPCB is a professional and reliable one-stop PCB solution company.

We provide clients with seamless prototype service, high-precision single, double-side multilayer printed circuit boards (up to 20 layer), LED Aluminum PCB, HDI PCB, High-TG PCB, Thick copper PCB, Flexible, PCB design, material sourcing, PCB assembly, end-to-end logistics and after-sales service

Since the establishment of the company, we have built very good relationship with many different customers.

Following the goal of our Company : Quality and Customers come help us get good reputation.

The production capacity of PCB can achieve 1000, 000 square meters per year.

The sales performance for PCBA is more than $120, 000.
