Heat Silicone Film Can Customized Various Specifications And High Resilience Non Stick - China

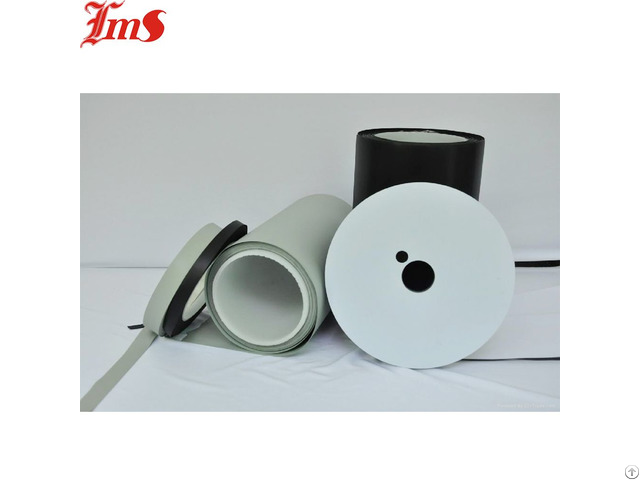

Lms-STF series heat pressed silicon rubber sheet Product features:

1 - Extremely high heat transfer, heat resistance and buffer.

2 - Not to FPC, Glass and other damage.

3 - The heat has super stable characteristics and the pressure on the product consistency.

4 - High resilience and non-stick.

5 - Antistatic, no powder on the surface.

Product specifications:

1, (thick: 0.2mm--0.45mm) * (width: 8mm-600mm) * (length: 5- 30m).

2, special specifications can be customized according to customer demand, and provide our customers customized various specifications of the iceberg.

3, the products are divided into common type SG (gray) and anti-static SGB (black).

4, the product is commonly used inside diameter 32mm, 38mm, can be customized according to customer demand.

Product application:

COG/FOG hot pressing bonding process for various display screens, ACF conductive film hot pressing, etc.

Product application: application of various display COG\FOG hot state fixed process, or for transistor, IC and other electronic semiconductor products for insulation material, heat dissipation material use, or application in electric regulator and a temperature sensor, the advance on the bottom surface of the hot pressing head, the conduction temperature more uniform, the isolation is pressing products and head, and can prevent electrostatic isolation protection role.

Specifications:

Thickness: 0.2mm~0.45mm

Width: 8mm~600mm

Length: 5m~30m Color: Grey and Black Hardness(Shore A): 75~80 Surface：Matte

Use Temperature(℃)：-60~32 0 Volume Independence(Ω.

cm)：10^ 8--10^12

Thermal Conductivity(w/mk): 0.5~0 - 73

Elongation(%): 165~180

Tensile Strength(Mpa): 6.0~7.3 Compression(Max%): 26~30 If you have another question, pls feel free to contact us as below:

Contacts : Demi

Tel : +86 755 84192795 Fax : +86 755 84192986

Company Contact:

• Posted By: Shenzhen Laimeisi Silicon Industry Co.,Ltd

• Phone: 13977320519

• Address: F/2,3 Building,huarong Industrial Park,Dalang Street,Longhuaxin District, Shenzhen , Guangdong , China

• Email:

• Website: https://laimeisi.en.alibaba.com

• Business Description: LAIMEISI is mainly engaged in the research, development, production and sales of heat-conducting heat-dissipating materials and silicone composite materials.

  The main productions are: silica gel leather for electric heating film, thermal conductive fireproof cloth, ano-coating copper foil, aluminum foil, thermal silica film, high transparent silica gel film, conductive silica gel and anti-static skin.

  The company's existing CNC coating line, rolling production line, molding machine more than one Taiwan.

  Our company has passed ISO9001 certification.

  Our products meet EU ROHS standards and have obtained a number of patented technologies.
