Hengxiang Absolute Encoder With Diameter 50mm Update To 12bit Gray Code - China

price: 80.00 Dollar US$

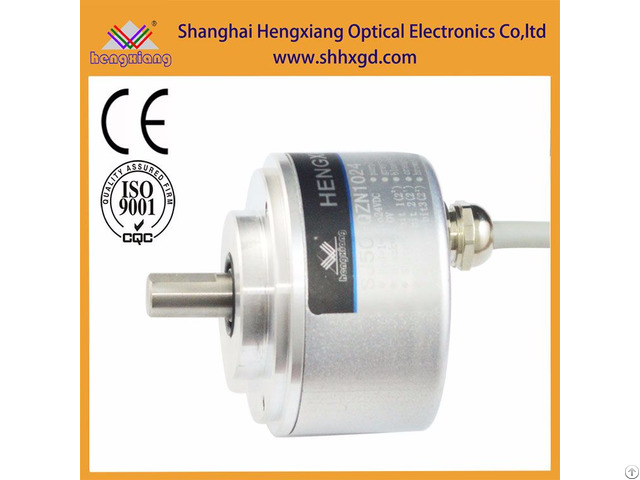

Hengxiang Absolute Encoder With Diameter 50mm Update To 12bit Gray Code

Products Photos Catalog Hengxiang Absolute Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control SJ50- Series Encoder Specification Brand: HENGXIANG

External dimensions: External diameter: 50mm

Thickness: 45mm

Shaft diameter: 8mm(D shape)

Resolution: Up to 12bit(4096ppr) Count Direction: CW/ CCW Supply voltage: DC12-24V

Outlettype: Cable out from side;Cable out from side(with metal sleeve);Socket out from back

Output mode: Gray code without reading error 1 - NPN open collector output with low level available

2 - PNP open collector output with low level available

Environmental temperature Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade: IP65

Cable length: 1000mm Shell: Aluminium

Package: Carton box

Net weight: About 150g (with package)

Certification: CE


Company Contact:


  • Phone: 15956966023

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China

  • Email: Email


Published date: May 19, 2017

  • Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
