Hengxiang Flange Encoder Diameter 65mm Solid Shaft 15mm With Keyway - China

price: 50.00 Dollar US$

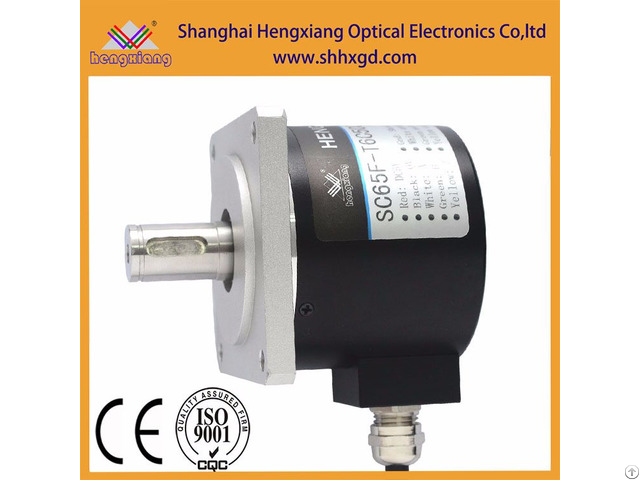

Hengxiang Flange Encoder Diameter 65mm Solid Shaft 15mm With Keyway

Products Photos Catalog Hengxiang Flange Photos Catalog

SC65F- Series Encoder Specification Brand: HENGXIANG

External dimensions: External diameter: 65mm(With square flange)

Thickness: 59mm (flange68*68*7mm)

Shaft diameter: 15mm, key groove 5*5mm

Resolution: 50;60;100;2 00;250;256;300;360;400;50 0;512;600;700;720;800;900 ;1000;1024;1200;2000;2048 ;2500;50008192;10000;1152 0;16384;20000;23040

Output phase: Phase A, B, Z, A-, B-, Z-

Supply voltage: DC5V & DC8-30V

Outlettype: Cable out from side;Socket out from back

Output mode: Collector open circuit output(NPN &PNP);Voltage output;Push-pull output ;Line drive (26LS31);Line drive (RT7272);Line drive (Compatible RS422)

Environmental temperature:

Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade: IP50 & IP65

Cable length: 1000mm Shell: Aluminium

Package: Carton box

Net weight: About 590g (with package)

Certification: CE


Company Contact:


  • Phone: 15956966023

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China

  • Email: Email


Published date: May 18, 2017

  • Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
