Hengxiang Incremental Rotary Encoder Diameter 50mm Solid Shaft 8mm 23040 Pulse - China

price: 40.00 Dollar US$

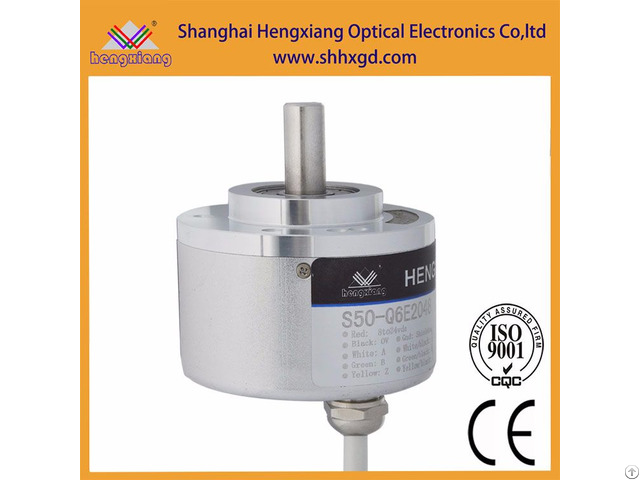

Hengxiang Incremental Rotary Encoder Diameter 50mm Solid Shaft 8mm 23040 Pulse

Products Photos Catalog Hengxiang Incremental Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control S50- Series Encoder Specification Brand：HENGXIANG

External dimensions：External diameter: 50mm

Thickness: 30mm

Shaft diameter: 6mm/8mm/10

Resolution：50;60;100 ;200;250;256;300;360;400; 500;512;600;700;720;800;9 00;1000;1024;1200;2000;20 48;2500;50008192;10000;11 520;16384;20000;23040

Output phase：Phase A, B, Z, A-, B-, Z-

Supply voltage：DC5V & DC8-30V

Outlettype：Cable out from side;Cable out from back;Socket out from back

Output mode: Collector open circuit output(NPN &PNP);Voltage output ;Push-pull output;Line drive (26LS31);Line drive (RT7272);Line drive (Compatible RS422)

Environmental temperature : Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity: Operating and storage: 35~85%RH (non-condensing) Protection grade: IP50 & IP65

Cable length: 1000mm Shell: Aluminium

Package Carton box

Net weight: About 190g (with package)

Certification: CE


Company Contact:


  • Phone: 15956966023

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China

  • Email: Email


Published date: May 18, 2017

  • Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
