Hengxiang K50 Series Rotary Encoder Hole 6 14mm Revolution Up To 23040ppr - China

price: 40.00 Dollar US$

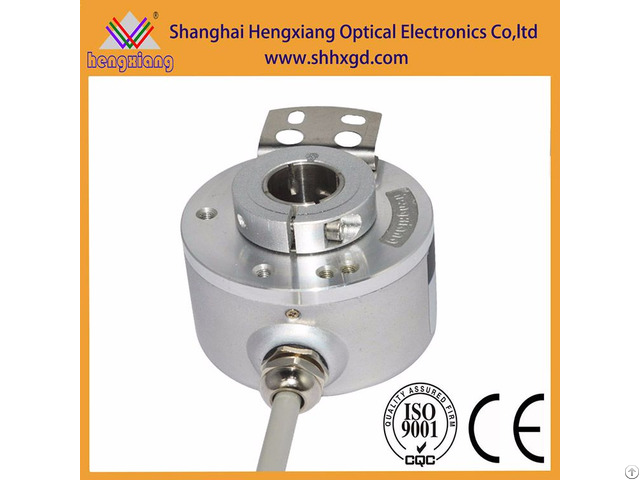

Hengxiang K50 Series Rotary Encoder Hole 6 14mm Revolution Up To 23040ppr

Products Photos Catalog Hengxiang K50 Rotary Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control K50- Series Encoder Specification Brand：HENGXIANG

External dimensions：External diameter: 50mm

Thickness: 30mm

Shaft diameter: 6mm/8mm/10mm/12mm/14mm


Resolution：50;60;100 ;200;250;256;300;360;400; 500;512;600;700;720;800;9 00;1000;1024;1200;1440;20 00;2048;3000;3600;4000;40 96;5000;5760;8192;10000;1 1520;16384;20000;23040


Output phase：Phase A, B, Z, A-, B-, Z-

Supply voltage：DC5V & DC8-30V

Outlettype：Cable out from side；Cable out from back

Output mode：Collector open circuit output(NPN &PNP)；Voltage output；Push-pull output；Line drive (26LS31)；Line drive (RT7272)；Line drive (Compatible RS422)

Environmental temperature Operating temperature: -20~+80° (Non icing)；

Storage temperature: -25~+85° (Non icing)；

Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade：IP50 & IP65

Cable length：1000mm Shell： Aluminium

Package ：Carton box

Net weight：About 200g (with package)

Certification： CE


Company Contact:


  • Phone: 15956966023

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China

  • Email: Email


Published date: May 18, 2017

  • Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
