Hengxiang Larger Hollow Encoder K100 Hole Up To 60mm - China

price: 80.00 Dollar US$

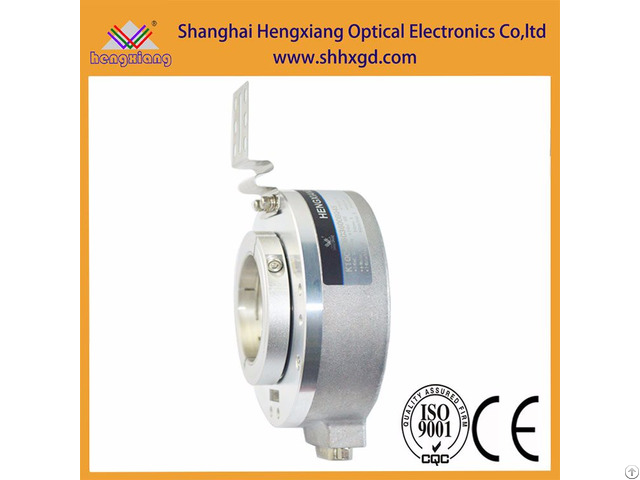

Hengxiang Larger Hollow Encoder K100 Hole Up To 60mm

Products Photos Catalog Hengxiang Larger Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control K100- Series Encoder Specification Brand: HENGXIANG

External dimensions: External diameter: 100mm

Thickness: 38mm

Shaft diameter: 30mm/35mm/38mm/40mm/42mm/ 45mm

Resolution: 512;1000;10 24;1200;2000;2048;2500;28 80;3000;3600;4096;5000;81 92;5760;10000;11520;12000 ;20000;24000;40000;48000

Output phase: Phase A, B, Z, A-, B-, Z-

Supply voltage: DC5V & DC8-30V

Outlettype: Socket out from side

Output mode: Collector open circuit output(NPN &PNP)

Voltage output: Push-pull output;Line drive (26LS31);Line drive (RT7272);Line drive (Compatible RS422)

Environmental temperature:

Operating temperature: -20~+80° (Non icing);

Storage temperature: -25~+85° (Non icing);

Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade: IP50

Cable length: 1000mm Shell: Aluminium

Package: Carton box

Net weight: About 670g (with package)

Certification: CE


Company Contact:


  • Phone: 15956966023

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China

  • Email: Email


Published date: May 18, 2017

  • Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
