Hengxiang Popular Hollow Shaft Encoder With External Diameter 76mm Through Hole 30mm Keyway - China

price: 70.00 Dollar US$

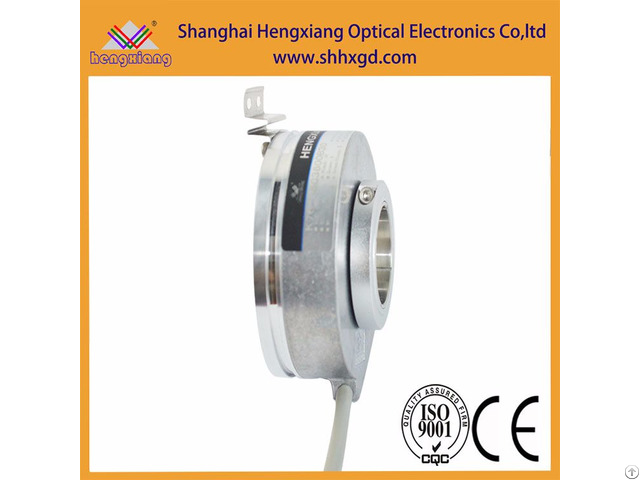

Hengxiang Popular Hollow Shaft Encoder With External Diameter 76mm Through Hole 30mm Keyway

Products Photos Catalog Hengxiang Popular Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control K76- Series Encoder Specification Brand: HENGXIANG

External dimensions: External diameter: 76mm

Thickness: 28mm

Shaft diameter: 16mm/18mm/20mm/22mm/25mm/ 28mm/30mm

Resolution: 100;200;300 ;360;500;512;600;720;800; 1000;1024;1200;1800;2000; 2048;2500;3000;3600;4096; 7200;8192;14400;16384;288 00;32768

Output phase: Phase A, B, Z, A-, B-, Z-

Supply voltage: DC5V & DC8-30V

Outlettype: Cable out from side

Output mode: Collector open circuit output(NPN &PNP);Voltage output;Push-pull output;Line drive (26LS31);Line drive (RT7272);Line drive (Compatible RS422)

Environmental temperature Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade: IP50

Cable length: 1000mm Shell: Aluminium

Package: Carton box

Net weight: About 370g (with package)

Certification: CE


Company Contact:


  • Phone: 15956966023

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China

  • Email: Email


Published date: May 18, 2017

  • Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
