Hengxiang S18 Series Incremental Miniture Solid Encoder With External Diameter 18mm Shaft 2 5mm - China

price: 30.00 Dollar US$

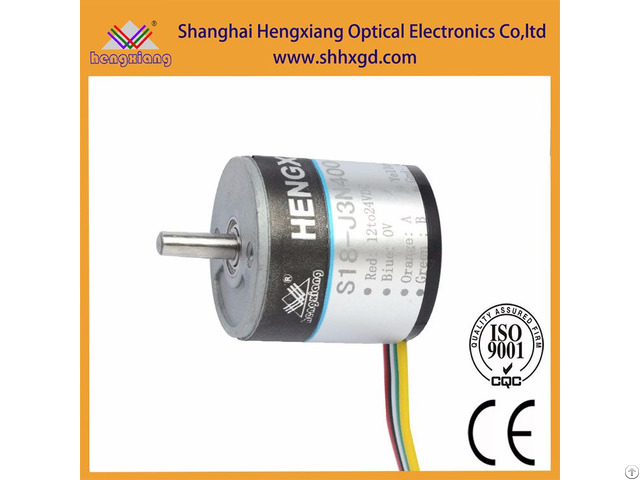

Hengxiang S18 Series Incremental Miniture Solid Encoder With External Diameter 18mm Shaft 2 5mm

Products Photos Catalog Hengxiang S18 Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control S18- Series Encoder Specification Brand: HENGXIANG

External dimensions: External diameter: 18mm

Thickness: 18mm

Shaft diameter: 2.5mm

Resolution: 36;50;60;10 0;200;250;256;360;400;500 ;1000;800;1600

Output phase: Phase A, B, Z Supply voltage: DC5V & DC12-24V

Outlettype: Cable out from side

Output mode: Collector open circuit output(NPN &PNP)

Environmental temperature: Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity : Operating and storage: 35~85%RH (non-condensing) Protection grade: IP40

Cable length: 150mm (cable length could be added ) Shell: Aluminium

Package: Carton box

Net weight: About 20g (with package)

Certification: CE


Company Contact:


  • Phone: 15956966023

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China

  • Email: Email


Published date: May 18, 2017

  • Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
