Hengxiang S38 Series Optical Encoder With Diameter 38mm Solid Shaft 6mm Revolution Up To 16384ppr - China

price: 30.00 Dollar US$

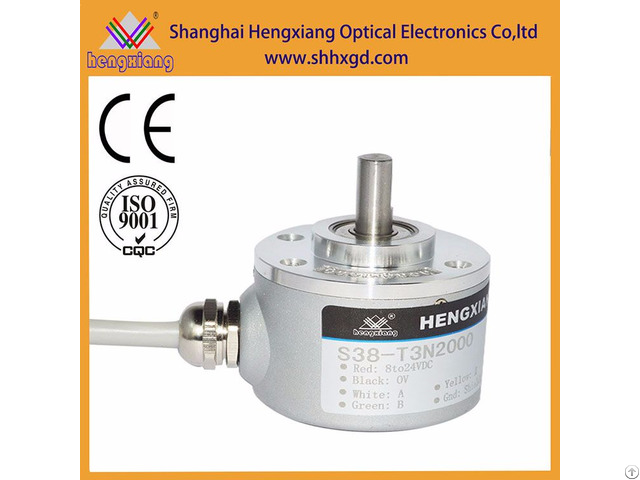

Hengxiang S38 Series Optical Encoder With Diameter 38mm Solid Shaft 6mm Revolution Up To 16384ppr

Products Photos Catalog Hengxiang S38 Optical Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control S38- Series Encoder Specification Brand: HENGXIANG

External dimensions: External diameter: 38mm

Thickness: 28mm

Shaft diameter: 5mm/6mm/8mm/6.35mm

Resolution: 50;60;100;2 00;250;256;300;360;400;50 0;512;600;700;720;800;900 ;1000;1024;1200;2000;2048 ;2500;50008192;10000;1638 4

Output phase: Phase A, B, Z, A-, B-, Z-

Supply voltage: DC5V & DC8-30V

Outlettype: Cable out from side

Cable out from back

Output mode: Collector open circuit output(NPN &PNP);Voltage output;Push-pull output Line drive (26LS31);Line drive (RT7272)

Line drive (Compatible RS422)

Environmental temperature

Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade：IP50 & IP65

Cable length：1000mm Shell：Aluminium

Package：Carton box

Net weight ：About 140g (with package)

Certification ：CE


Company Contact:


  • Phone: 15956966023

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China

  • Email: Email


Published date: May 18, 2017

  • Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
