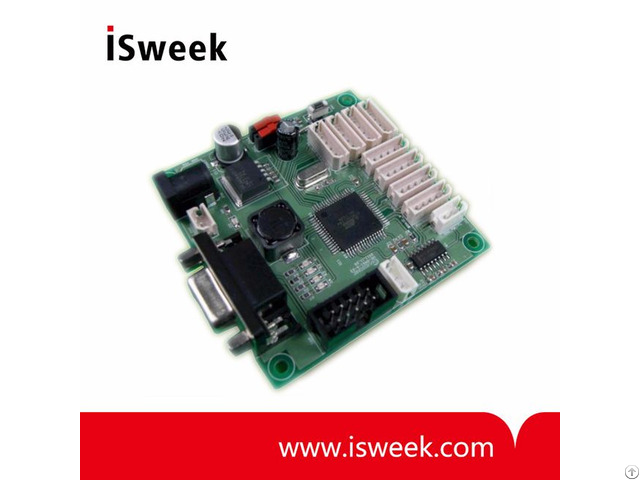

Hg Dmsi 02 Distance Measure Sensor Interface Board - China
price: check with company for price
Distance Measurement Interface Board
/
HG-DMSI-02 Distance Measure Sensor Interface Board Features
• Size : 80 x 80 mm
• Channel : Connect up to 8 Ultrasonic Sensors (HG-B40A, HG-B40C <5V and external mode> Conly)
• Power : DC 12V(DC Jack connector 1ea, 2pin connector 1ea), DC 5V(2pin connector 1ea)
• Output : RS232(9-pin DSUB 1, 3-pin connector 1), UART(3-pin connector 1)
/
HG-DMSI-02 Distance Measure Sensor Interface Board Communication Setting
• Default Baudrate : 57600 bps * (LED ON is showing current Baudrate ) 1: 9600, 2: 19200, 3: 38400, 4: 57600
• Data bit : 8 bit
• Stop bit : 1 bit
• Parity bit : None
• Hardware Flow control : None
