HG-MP40WP

Ultrasonic Multi-Step Proximity Sensor/Module for Water Proof Types of Ultrasonic Sensors

/

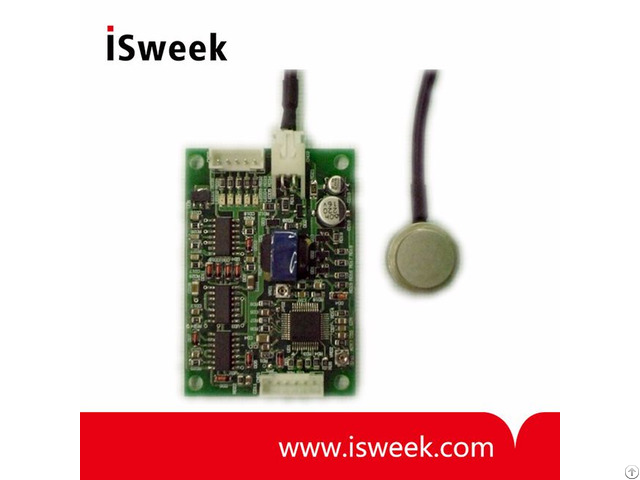

HG-MP40WP Ultrasonic Multi-Step Proximity Sensor Description

• Using only a single sensor(transceiver sensor) unit for both transmittance and receiving ultrasonic waves

• Convenient for distance measuring and object detection.

• Two types of transmit mode for convenience - Free Run mode : with a power supply, sensor/module itself transmits trigger and burst signal – for basic & stand alone application - External Trigger : External system(a controller or processor circuit) controls the trigger signals – for advance application such as multi-sensor system

• Input DC voltage is applicable in the wide range from 6 V to 15 V

• Output signal of 5V TTL level is applicable to processor circuit usage or controllers of industrial system.

• Four simultaneous output signals - Ultrasonic waveforms of received and amplified signals - Squared signals in TTL level corresponding to detected ultrasonic waveforms - Squared signal that the pulse-width is proportional to distance - Independent signal outputs for proximity detection corresponding to five step detection range setting with the interval of 1 m in distance → The detection range setting is 1 m, 2 m, 3 m, 4 m, and longer than 4 m and the accuracy of distance setting is about ± 10% of distance.

There are total five steps.

→ High level signals of DC 5 V are independently outputted at different

terminals corresponding to distance when obstacles are detected, respectively.

→ also, lights are turned on at LEDs of the different quantity depending on distance.

→ Therefore, the detection of signals can be used at only one terminal or the combination of several distance setting.

※ The setting of a special detection range in distance is available for volume orders

• High performance ASIC Chip is mounted in the module for stable transmission and sensitive reception (Maximum amplification is about 5, 000 times)

• Long distance detection is available by optimized design

/

HG-MP40WP Ultrasonic Multi-Step Proximity Sensor Features

• Multi-function transceiver model for water proof types of ultrasonic sensors

• Two types of transmit modes: Free Run and External Trigger modes

• Free voltage in power supply (DC 6 V ~ 15 V)

• Four kinds of simultaneous output signals - Ultrasonic waveform of a received and amplified signal - Squared signal in TTL level corresponding to ultrasonic waveform - Squared signal that its pulse-width is proportional to distance - Independent signal outputs for proximity detection corresponding to five step detection range setting of 1 m interval in distance

• Employing a high performance ASIC Chip

• Detection of obstacles located at a long distance

/

HG-MP40WP Ultrasonic Multi-Step Proximity Sensor Application

• Distance Measurement, Obstacle detection for AGV and robot, and industrial machinery etc., Outdoor parking lot management, Safety facility management and risk alerts, customers facilities, power saver, and automation equipment, etc.

/

HG-MP40WP Ultrasonic Multi-Step Proximity Sensor Specification

• Input DC: 6 ~ 15V (12 V recommended)​ • Frequency: 40kHz (Nominal)​ • Size​: PCB : 56 x 39 x 15mm; Sensor : Φ16 x 10​ mm • Operating Temperature: - 30 ~ + 85​˚C • Four kinds of simultaneous output signals • Detection of obstacles located at a long distance • Two types of transmit modes: Free Run and External Trigger modes
