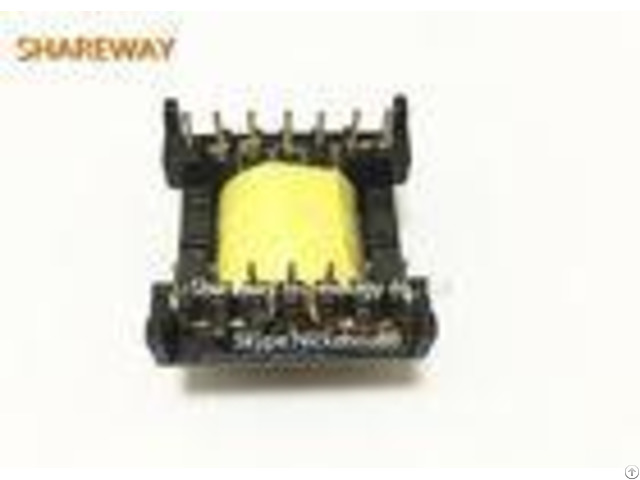

High Frequency Switch Mode Power Supply Transformer 749197101 For Led Driver - China

749197101 High Frequency Switch Mode Transformer With UL Certificated D Electrical Properties: - - - - Properties | Test conditions | | Value | Unit | Tol.

| Inductance Base | 100 kHz/ 100 mV | LBASE | 284 | H | 25% | Turns Ratio | N1: N2: N3: N4: N5: N6 | n | 1: 1: 1: 1: 1: 1 | | | Rated Current Base | T = 40 K | IR BASE | 2.2 | A | typ.

| Saturation Current Base | |L/L| < 10 % | ISAT BASE | 0.25 | A | typ.

| DC Resistance Base | @ 20 C | RDC BASE | 45 | m | max.

| Leakage Inductance Base | 100 kHz/ 100 mV | LS BASE | 0.32 | H | typ.

| Insulation Test Voltage | 3 mA/1 s | UT 1 | 500 | V (AC) | | - - - - 1 - Inductance of a single winding 2 - Rated Current of a single winding 3 - Saturation Current of a single winding when all windings are driven.

If not all windings are current drive the Saturation current per winding is 6x Isatbase / number of driven windings 4 - DC Resistance of a single winding 5 - Insulation test voltage: between all windings E General information: It is recommended that the temperature of the part does not exceed +125C under worst case conditions.

# Storage Temperature: -40C to 85C # Operating Temperature: -40C to 125C # Test conditions of Electrical Properties: 20C, 33% RH if not specified differently Application: # LED driver # Lightening appliance # Communication equipment # Switching Power Supply # Main Power Transformer # Household appliances # Office equipment # A Variety Of Small Electronic Equipment And Instruments 749197101 High Frequency Switch Mode Transformer With UL Certificated Shape and Dimensions: 749197101 High Frequency Switch Mode Transformer With UL Certificated HOW TO ORDER 1 - Please send me your datasheet or part number you need.

2 - We will offer the replacement quotation for your reference 3 - The free samples are available for your approval.

4 - After sample testing, we will step into the mass order.

5 - The Proforma Invoice will send for your confirmation 6 - After the goods finished, we send the goods to you and tell you the tracking number.

7 - We will track your goods until you receive the goods.

Remarks: 1 - Sample orders are avaliable.

2 - Price is negotiable for orders of large quantity.

3 - Customized orders (OEM/ODM orders) are avaliable.

4 - Contact us for available flavors list.

International Certifications: 1 - ISO9001: 2008 2 - UL 3 - Reach 4 - RoHs Our service: 1 - 100% tested before shipping 2 - Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, CoilcraftSame quality but better price 3 - Free sample available 4 - Provide new design for customer
