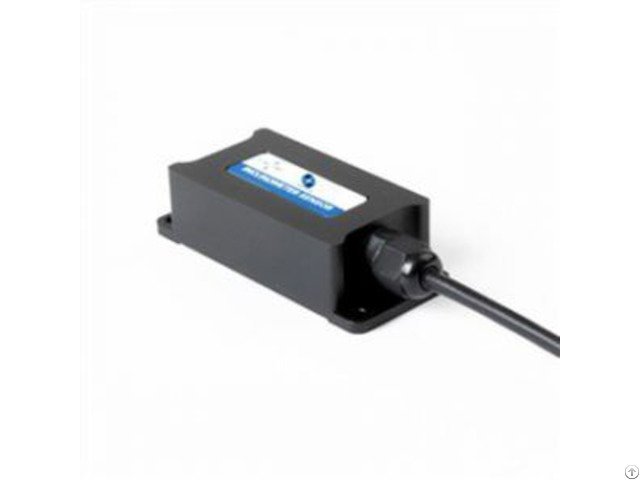

High Performance Relay Type Single Axis Dual Way Tilt Switch - China

Introduction

ER-TS-05 is a high-performance relay output single-axis dual-channel DIP switch with a measuring range of 0~±180° and a built-in relay output circuit.

When the inclination value is greater than the preset value, the alarm threshold will output the error contact relay signal (driving current 1A), and open the solenoid valve for corresponding hydraulic leg leveling.

It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set it by himself.

The product integrates an imported core unit, and uses a transistor output circuit to drive a solenoid valve to close the hydraulic system, buzzer, and warning light.

The product is used in industries related to horizontal security alarm and platform level monitoring.

It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.

Features

Uniaxial tilt monitoring

Full range accuracy 0.1°, resolution 0.01°

The alarm threshold can be set by the user

Wide voltage input DC 9~36V

Wide operating temperature -40~+85℃

High vibration resistance >3500 g

Range 0~±180°(optional)

Industrial design

IP67 protection class

Relay output (normally on, normally closed) and RS232 output at the same time

Volume (90*40*27mm) (Customizable) Applications

Railway gauge

Satellite solar antenna positioning

Tractors, deep-ploughing machines

Mining machinery, oil logging equipment

Medical equipment

Yuntai leveling

Hydraulic lifting platform

Tilt based monitoring

Angle control of various construction machinery

Inspection of bridges and dams
