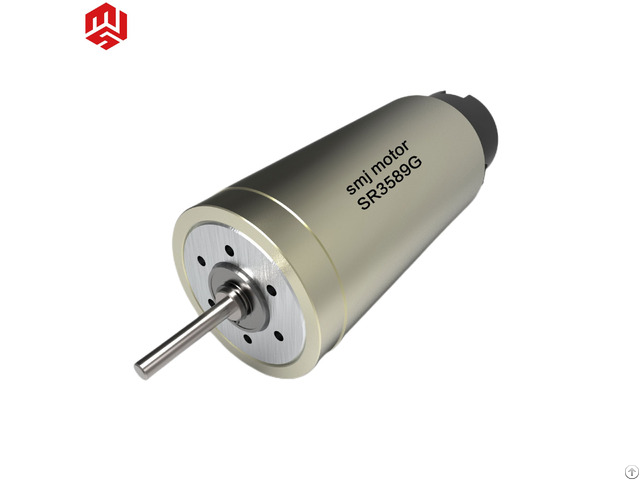

High Precision Brushed Servo Dc Motor - China

Series: SR3589G

high precision Brushed servo DC Motor

Warranty: 3months-1year

Place of Origin: Shanghai, China

Brand Name: SMJ

Usage: BOAT, Electric Bicycle, SMART HOME, Automation & Actuators, Audio/visual equipment, AGVS

Type: SERVO MOTOR

Torque: 119mNm

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Speed(RPM): 6490-7200rp m

Continuous Current(A): 2.62-5.6A

Efficiency: IE 1

brush type: Graphite Brushes

max.

torque: 119mNm

stall torque: 950-1200mNm

diameter: 35mm

length: 88.8mm

Certification: CE

DC brushed motor (coreless) application: 1 - The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.

2 - Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.

3 - Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.

4 - Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.

5 - Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office equipment, without the need to make the products bigger.

6 - Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.
