High Precision Current Probe Sensor - China

price: 195.00 Dollar US$

High Precision Current Probe Sensor

Products Photos Catalog Precision Current Photos Catalog

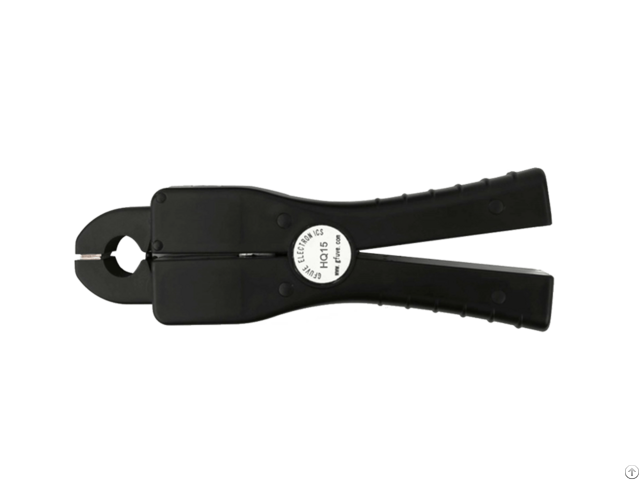

The HQ15 100a current probe sensor is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.

The sensing head uses sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged objects directly.

This model HQ15 current sensor is a high accuracy mini current probe for measurements up to 130A AC.

This current probe uses a special magnetic core to provide higher accuracy and lower phase shift.

The HQ15 Series is an excellent probe sensor to be used in power and low level current measurement applications.

Parameters:

Accuracy class: 0.1%, 0.2%

Ratio: 1000: 1; 2000: 1; 2500;1(customized)

Primary current: 0-5A AC and 0-100A AC

Secomdary current: 0-5mA or 0-100mAA AC

Signal output: 10mV/A, 1mV/A, 1mA/A

Frequency range: 40Hz-5KHz

Output mode: lead output (2.5m)

Dimensions: 46*162*25mm

Weight: 320g

Jaw color: Black

Holding wire diameter: 15mm


Company Contact:


  • Phone: 18901232181

  • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

  • Email: Email

Published date: January 24, 2024

  • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
