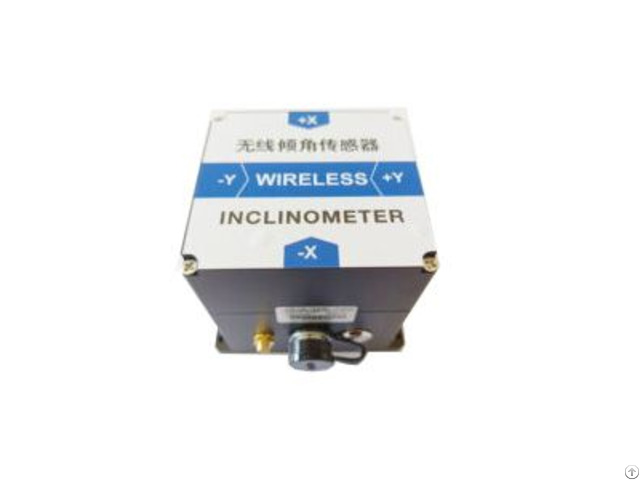

High Precision Wireless Tilt Sensor - China

ER-TS-12200-Modbus Features:

1 - Dual axis monitoring (single axis optional);

2 - Full range accuracy 0.001°, resolution 0.0005°;

3 - Volume (94*74*64mm).

Introduction

ER-TS-12200-Modbus High Precision Wireless Transmission Tilt Sensor is a wireless inclination sensor with ultra-low power consumption, small size and high performance, which is aimed at the industrial application of users without power supply or real-time dynamic measurement of object attitude angle.

Powered by lithium battery, based on Internet of things technology Bluetooth and ZigBee (optional) wireless transmission technology, all internal circuits have been optimized and designed, and various measures such as industrial MCU, three proof PCB board, imported cable, wide temperature metal shell are adopted to improve the industrial level of the product.

With good long-term stability and small zero drift, it can automatically enter the low-power sleep mode, so as to get rid of the dependence on the use environment.

The product has compact structure, precise design, recompensation for temperature and linearity, and integrated comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc.

it is simple and convenient to use.

The wireless digital signal transmission method eliminates the cumbersome wiring and noise interference caused by long cable transmission; The industrial design has extremely high measurement accuracy and anti-interference ability.

The wireless sensor nodes can form a huge wireless network, support thousands of measuring points to monitor the inclination at the same time, and support professional computer software.

Without field survey, it can measure and record the state of the measured object in real time; The safety monitoring system is suitable for remote real-time monitoring and analysis of industrial sites, dilapidated houses, ancient buildings, civil engineering, tilt deformation of various towers and other needs.

Features

Dual axis monitoring (single axis optional)

Range: ±30°

Accuracy: 0.001°, resolution: 0.0005°

Volume (94*74*64mm) (customizable)

Ultra low power consumption

Powered by built-in rechargeable lithium battery

Wide temperature operation -40~+85℃

IP67 protection grade Applications

Bridge construction

PTZ levelling

Ship navigation attitude measurement

High railway foundation tunnel monitoring

Satellite solar antenna positioning

Medical equipment

Angle control of various construction machinery
