High Quality Customized Common Toroidal Core Coil Network Transformer Inductance Coils Wholesale - China

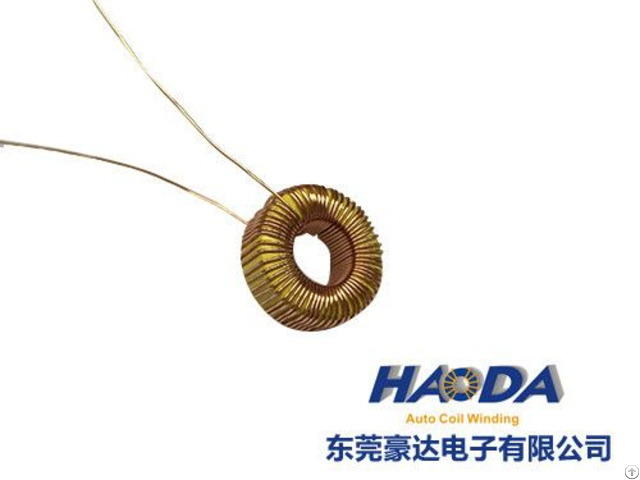

Magnetic ring inductance coils

The magnetic ring inductance coil is mainly used for the switch power supply.

For manufacturing the filter inductor (inductance coil) and transformer, the electromagnetic inductance elements wound with insulating conductors (such as enameled wire, cotton covered wire and so on).

Such coil is also the one of common components of the electronic circuit.

The relevant products include common mode filter and so on.

It has such characteristics as low consumption, high magnetic conductivity, low cost and so on.

I.

Self-inductance and mutual inductance

(1) Mutual inductance

When the current passes through the coil, there will be magnetic field around the coil.

When the current in the coil changes, the magnetic field around the coil will also change, the changing magnetic field can make the coil itself to have induction electromotive force (the induction electromotive force is used to express the terminal voltage of the ideal power supply of the active element), this is self inductance.

(2) Mutual inductance

When two inductance coils mutually approaches, change of the magnetic field of an inductance coil will affect another inductance coil, this influence is just mutual inductance.

Size of mutual inductance depends on the coupling degree between the self-inductance of the inductance oil and two inductance coils.

If one capacitance is connected to the DC power supply, there will be charging at the time when the power supply is switched on.

Because Q=CU, and there will instantaneous directional movement of charge in the circuit and short-time current.

However, after it is stable, the charge in the circuit will not move, and there will not be current in the circuit.

When the circuit changes, the voltages at both ends of the capacitance will reduce, the capacitance will discharge.

Because Q=CU, after it is stable, there will not be function of current in the circuit.

Because the voltage of AC power supply continuously changes, and thus the capacitance will continuously charge.

Thus, the current seems to pass through the capacitance, but the fact is not so.

Of course, the capacitance also has impedance effect on AC power supply.

Company Contact:

• Posted By: Dongguan Haoda Electronics Co.,ltd.

• Phone: 86-769-81669906

• Address: 3F, Weian Industrial Park, No.6 Jinchang Road, Jinxia Village, Chang’an Town, Dongguan City, Dongguan , Guangdong , China

• Email:

• Website: http://en.gdhaoda.com

• Business Description: Dongguan Haoda Electronics Co.,ltd.

  contact person: Miss Huang

  contact phone: +86 18676907980

  Email: sam.

  wong@gdhaoda.

  com

  Webside: http: //en.

  gdhaoda.

  com

  Dongguan Haoda Electronics Co.,ltd. is a professional manufacturer of fully automatic toroidal coil winding machine and small toroidal coil winding enterprises，which toroidal coils is widely used in power converters, network filter,transformers and other communications products.

  The company has many years of experiences in manufacturing, with well quality assurance control during manufacturing and processing of products.

  After 30 more years consistent hard working and persistence, Haoda has produced the most advanced and use-friendly fully automatic toroidal winding machine, which capable of fulfill the simplest to the most difficult applications.

  Haoda is leading the fully automatic winding machine to the first- class in the world.

  To meet the customer demand request with shortest delivery time, the company currently has more than 300 sets of fully automatic winding equipment for coil winding, the production capacity is up to 1000,000pcs/day maximum.

  Haodas R&D team also possesses a high level of expertise in developing special winding device according to customer needs to help the customer reduce production cost and the stress of growing shortage of workforce.

  Dongguan Haoda Electronics Co.,ltd, since its inception, has been adhering to perfect equipment quality, excellent performance and comprehensive technical service concepts.

  It produces a series of cost-effective and convenient operation models to serve the Asia Market, our key customers are APPLE, PULS ELECTRONICS, MENTECH, EATON, SKYWORTH, EMERSON, COOPER etc.

  well know manufacturers.

  We will continuously improving and making innovation to meet customers requirements.
