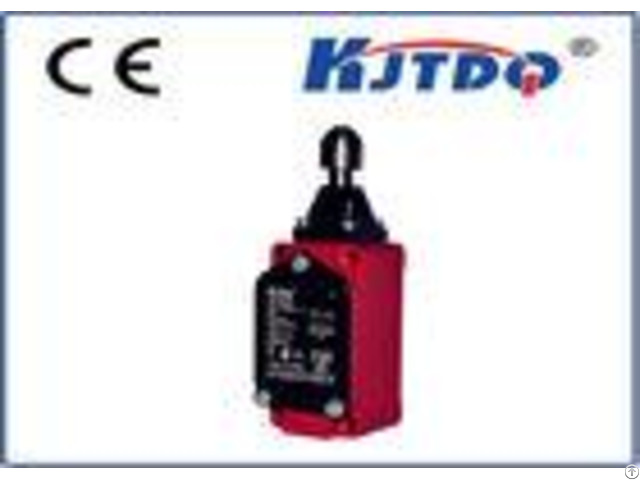

High Temperature Industrial Limit Switches Thermoplastic Roller Lever Mental Cast - China

KJT-XW Series High Temperature Limit Switch Quick details: Name: High temperature limit switch Model: KJT-XW Operating temp: -25~350 Specification: - - - - Rated Voltage(V) | Noninductive Load (A) | Inductive Load (A) | | Resistance Load | Lamp Load | Inductive Load | Motor Load | | NC | NO | NC | NO | NC | NO | NC | NO | 125 V AC | 10 | 3 | 1.5 | 10 | 5 | 2 | 250 V AC | 5 | 2 | 1 | 5 | 3 | 1.0 | 480 V AC | 3 | 1.5 | 0.8 | 3 | 1.5 | 0.8 | 600 V AC | 1 | 1 | 0.5 | 1.5 | 1 | 0.5 | 8 V DC | 10 | 6 | 3 | 10 | 6 | 14 V DC | 10 | 6 | 3 | 10 | 6 | 30 V DC | 6 | 4 | 3 | 6 | 4 | 125 V DC | 0.8 | 0.2 | 0.2 | 0.8 | 0.2 | 205 V DC | 0.4 | 0.1 | 0.1 | 0.4 | 0.1 | - - - - - - - - Model No.

| KJT-XW | Name | High Temperature Limit Sensor | Rated current | 10 A 250 VAC | Operation speed | 1 mm--2 m/sec | Operating frequency | Mechanical: 120 operations/minute Electrical: 30 operations/minute | Contact resistance | 15 m max.

(initial value) | Insulation resistance | 100 m min.

(at 500VDC) | Dielectric strength | 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity | 2200VAC, 50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts | 2200VAC, 50/60 HZ for 1 minute between each terminal and ground | Vibration | 10-55 HZ, 1.5 mm double amplitude | Shock | Mechanical durable: 1000m/Sec2(about 100G'S); Malfunction(Misoperation) : 300m/Sec2(about 30G'S) | Operating temperature | -60C ~ +350C | Operating humidity | Max.

95% RH | Life | Mechanical: 15, 000, 000 above Electrical: 500, 000 above | Protection degree | IP 67 | Weight | 258 g | Logo | Customized logo with Decal / Frosted / Print are available as request | Payment term | 30% deposit in advance, 70% before shipment, 100% T/T in advance | Certificate | CCC, CE, ISO9001 | Design ability | We can supply sample, OEM & ODM is welcome (Design, Engineering, Photographing, Sample, Production) | - - - - Application: High temperature limit switch is widely used in steel mills, and the temperature can up to 350 - Competitive Advantage: 1) Double circuit type of limit switch 2) Temperature up to 350 C, products are divided into high temperature 200 C and 350 C two specifications FAQ: Q: What's your warranty ? How about the quality of your sensors ? A: 18 mouths .

We have the certification of ISO, CE, CCC.

Our sensors can replace many famous brand sensors(BALLUFF, IFM, P+F, TURCK, OMRON, SICK, Contrinex, Schneider, KEYENCE, BANNER, BAUMER, AUTONICS, etc) You can provide us the date sheet and we check whether can produce.

Q: What's your shipment method? A: We ship by Express, by air, by sea, by train.

Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ? A: First order MOQ=5 pcs (different type sensor has different MOQ)
