Higo Motor Connector - China

price: contact company for price

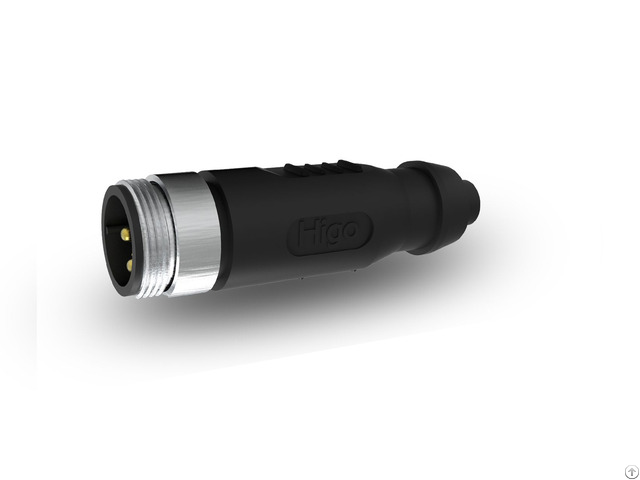

Higo Motor connector HIGO CONNECTOR-F.

M-L1019A

High-power Motor connector power output above 1000W/H Customized solutions

Rated Voltage 60V AC/DC

Rated Current 2A/45A

Withstanding Voltage 700V

Insulation Resistance ≥20MΩ

Contact Resistance ≤10mΩ

Mating Type Screw Locking

Mating Cycles 200Times

Operation Temperature -25℃~+80℃

Protection Degree IP67

Max Outer Diameter 19mm

Mating Length 120mm

Contact Material Copper alloy plated with gold which conforms to military standard

Wire Section 0.14mm²+4.0mm

We are professional high-quality Motor connector manufacturer.

We support Customized Battery connector .


Company Contact:


  • Phone: 86 512 51918068

  • Address: No.17,Qingfang Road,Xinzhuang Town, Changshu , Jiangsu , China

  • Email: Email


Published date: June 23, 2020

  • Business Description: Shanghai Higo Electrical Equipment Co., Ltd. is a high-tech company committed to the design and manufacture of advanced electrical connectors, and provides solutions for connector and cable and electromechanical products.

    The company's products range, is widely used in mechanical and electrical equipment, transportation, energy exploration and production, aerospace, medical, nuclear technology, military and other professional applications; We can not only supply high-quality products comply with relevant standards, but also can provide customized service products of high quality and fast; all products are through relevant application certification, meet the requirements of environmental protection.

    The process of Higo is the process of serving customers and being successful with their customers! We are diligently and diligently doing everything, and we are full of confidence to meet every challenge.

    Higo can supply signal connector, motor connector and battery connector, etc.

    Our product's reliability is guaranteed and it can give you a good use experience.
