Hitachi Gxh 1s Pick And Place Machine - China

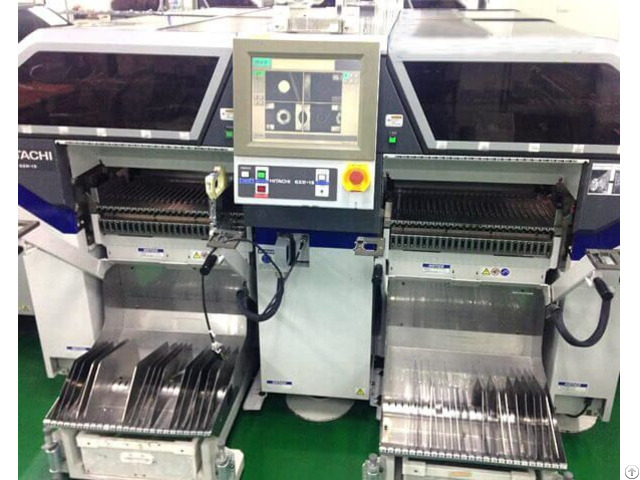

Hitachi GXH-1S pick and place machine Products Description: Extreme high-speed placement with flexibility to handle larger components.

Two independent work cells (stages) allow simultaneous assembly of two boards.

All X and Y axes are operated by linear motors.

Each Y axis has two motors for enhanced stability and repeatibility.

Four placement heads have up to 12 nozzles each.

On-the-fly recognition of all components.

A line sensor on each head checks for component presence, orientation, and correct thickness.

Unique board conveyor system moves both rails for optimum board postioning during production.

No more "fixed rails" Hitachi GXH-1S parameters

High precision long life decomposition energy: 0.0048um, speed: 2m / sec maximum acceleration of 3G.

Dress accuracy: +/- 0.05mm, special correction: +/- 0.035mm

12 nozzles, 12 parts as long as the shuttle flash once know, Camera recognition time, 2m / s, Large field of view 0201 ~ 44 * 44mm parts are recognized once, up to 55 * 55mm connect to 100 * 26 * 25.4mm Walking flash understanding, high-brightness lighting, awareness correction, video capture time: 5u / sec

The use of a double hanging material feeder can fly two different materials can be linked to high-speed high-precision feeding, driven by a servo motor, speed: 0.08 seconds / a (feeding pitch is 2, 4mm) Accuracy: +/- 0.05mm (8mm * 2mmpitch 0201)

Feeder models of simplification, paper, tape for feeding, feed pitch variable

A head has 12 suction nozzles, a nozzle automatically replace the system, each line when the actual production needs change, the system automatically replace the nozzle, the change line faster, (production does not replace the nozzle) Heterosexual head 3 nozzle is in the production according to the size of the parts to replace the nozzle

Double track within the device, the same table can be placed two boards (circuit board width below 215mm)

Part Database Automatically builds new part data for your system in just 1-5 minutes

Widely used high-speed placement head 0402 ~ □ 44mm

High-speed / multi-functional placement head non-stop replacement placement head module

Smart Tape Feeder / Multi-Layer Tray Feeder with Non-Stop Feeder Module

High production

Real-life performance and stability of the direct drive placement head

Linear motor drive 4-axis 4-head structure; non-stop one-time identification (up to 12 parts) Keywords: China reflow oven, Pick and place machine factory, China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer, pick and place machine supplier.

Flason Electronic Co., ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT pick and place machine, smt stencil printer, PCB conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp: 008613691605420, Skype: flasonsmt, Email: sales@flason-smt.

com FAQ 1) This is the first time I use this kind of machine, is it easy to operate? There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ? Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ? 1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !) A.

Consult us about this product on line or by e-mail.

B.

Negotiate and confirm the final price, shipping, payment methods and other terms.

C.

Send you the proforma invoice and confirm your order.

D.

Make the payment according to the method put on proforma invoice.

E.

We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.

Send your order by air or by sea.

5)Why choose us ? A.

Gold supplier on Alibaba ! B.

Trade assurance to US$54, 000 ! C.

Best price & Best shipping & Best service ! Contact information PREVIOUS：I-Pulse M20 Pick and Place Machine NEXT：Fuji NXT III Pick and Place Machine
