Hitachi Sigma F8 Pick And Place Machine - China

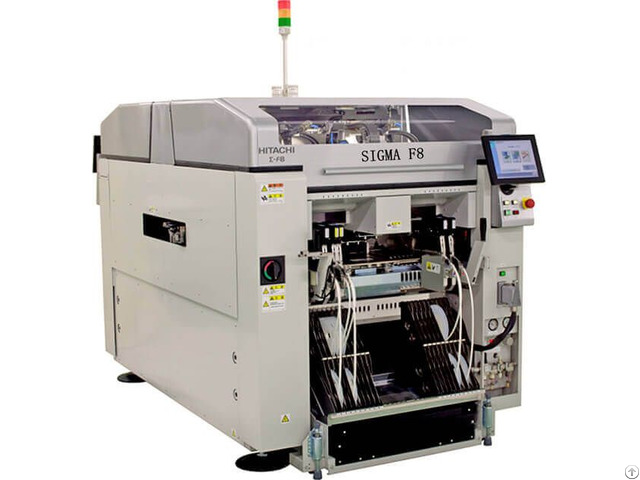

Hitachi SIGMA F8 Pick and Place Machine

Pick and place machine

Hitachi SIGMA F8

Mounting Speed: 156, 000CPH

Applicable components: 0402

Product description: Hitachi SIGMA F8 Pick and Place Machine INQUIRY

Hitachi SIGMA F8 pick and place machine Products Description: Hitachi SIGMA F8 parameters

Device Name: Hitachi Mounter

Model: SIGMA-SIGMA F8

The placement head consists of: 4 placement heads / modules

Mounting Speed (Highest Mounting Speed): 156, 000CPH

Board size (mm) Monorail, / double track: 50 * 50 - 330 * 250

Applicable components: 0402 -

Equipment size (mm): Ll2, 80 D2, 240 Hl, 450

Equipment weight: about l, 900kg (excluding trolleys and feeders)

Power supply: 3-phase AC200V ± 20V, 5O / 60Hz

Air pressure: 0.45-0.69MPa (4.6-7kgf / cm2)

Setting: O.

45MPa (4.6kgf / cm2)

Hitachi Mounter SIGMA F8, HITACHI Mounter Features:

To leapfrog performance, into the ultra-high-speed era

High Productivity (156, 000 cph) High Production Coverage (54, 400 cp / m2)

High reliability of small components mounted (placement accuracy 30: soil 36μm) Flason operation

Evolving direct drive placement head Super High Speed DDH (Direct Dreve Head) High-speed high-precision direct-drive placement head High Speed One By One Suction / Mount Quatro Head (4 over the head structure) Four heads were mounted in the same space as the previous generation SIGMA-G4 / SIGMA G5 Significantly increase the production capacity per unit area Horizontal rotation detection Detection of all the tiny components of the suction state (with or without oblique), measured the thickness of components, feedback and adjust the mounting height Whether the components are taken back Excellent operability SL (Super Loading) gun Automatic follow-up guns will greatly reduce the operator's homework Intelligent operation The entire line can be controlled on any module (line start / stop / program change) Bad point identification and other substrate information sharing of all production lines High reliability LISA (Line Information Support & Administration) Material gun material testing to prevent the wrong material production CV tracking support / data unified management ACV (Advanced Component Validation) ACV system Production line information unified management Support non-stop switching Production line operation and management Theoretical speed of the patch 156, OOOCPH

Placement range 1005 (0402) -32mmIC

Placement accuracy plus or minus 0.03mm

PCB size 50 * 50 - 330 * 250mm

Equipment size: Ll2, 80 D2, 240 Hl, 450

Power 3-phase AC200V ± 20V, 5O / 60Hz

Equipment weight 1900kg

Keywords: China reflow oven, Pick and place machine factory, China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer, pick and place machine supplier.

Flason Electronic Co., ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT pick and place machine, smt stencil printer, PCB conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp: 008613691605420, Skype: flasonsmt, Email: sales@flason-smt.

com FAQ 1) This is the first time I use this kind of machine, is it easy to operate? There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ? Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ? 1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !) A.

Consult us about this product on line or by e-mail.

B.

Negotiate and confirm the final price, shipping, payment methods and other terms.

C.

Send you the proforma invoice and confirm your order.

D.

Make the payment according to the method put on proforma invoice.

E.

We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.

Send your order by air or by sea.

5)Why choose us ? A.

Gold supplier on Alibaba ! B.

Trade assurance to US$54, 000 ! C.

Best price & Best shipping & Best service !
