Hitachi Tcm X300 Pick And Place Machine - China

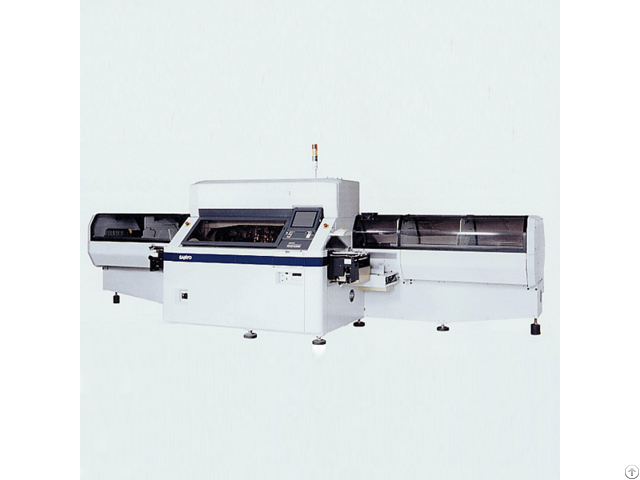

Hitachi TCM-X300 Pick and Place Machine

Head: 12 Heads

PCB: 560 mm * 460 mm

Equipment weight: 4800KG

Product description: Hitachi TCM-X300 Pick and Place Machine INQUIRY

Hitachi TCM-X300 pick and place machine Products Description: Head: 12 Heads

Sewing speed (Best condition): 0.075 second

PCB dimensions: max.

560 mm * 460 mm, 50 mm * 50 mm

: 0201 - 32/32 mm QFP SOP, altitude 6 mm or less 0

Charge quantity: 144 Trend: Left Right (Right Left: Option)

Air: 4.5 - 6.9 Kgf / cm 2 Power source and power source: 200 V - 220 V 3 PH, 50/60 Hz, 16 KVA, ✧ Source: 100 L / min

Equipment dimensions: L 6000 mm, W 2247 mm, H 1695 mm

Equipment weight: 4800 kg

Maker: Hitachi (Sanyo) Target board dimensions (mm) 50 × 50 to 330 × 250 t = 0.5 to 5.0 (TCM-X 110 J)

50 × 50 to 330 × 250 t = 0.5 to 5.0 (TCM-X 110 M)

50 × 50 to 560 × 460 t = 0.5 to 5.0 (TCM-X 300 S)

(The board carrying range is 610 x 460 mm.

)

Target packaging 8 mm (paper tape) 8 - 44 mm (embossed tape), bulk

Number of mounted feeders (8 mm tape) (book) 60 (30 × 2) (TCM - X 110 J)

120 (30 × 4) (TCM-X 110 M)

72 (36 × 2) (TCM-X 300 S) Power source used 3 phase AC 200 V ± 20 V 50/60 Hz Approx 14 kVA

Air pressure used (MPa) Dry clean air 0.45 to 0.69

Maximum wearing time (sec / piece) (optimum condition) 0.075

(Option 0.072)

Equipment dimensions (mm) Width x Length x Height

(Tower lamp height) 2, 400 × 1, 953 × 1, 695 (2, 100) (TCM-X 110 J)

4, 500 × 1, 953 × 1, 695 (2, 100) (TCM-X 110 M)

3, 130 × 2, 223 × 1, 695 (2, 100) (TCM-X 300 S)

Mass (kg) Approximately 3, 400 (TCM - X 110 J) / approximately 3, 950 (TCM - X 110 M)

About 4, 000 (TCM-X 300 S)

Option Installed Coordinate Teaching Parts Library Teaching Barcode Reel Check Barcode Model Switching BGA, CSP Black Light Board Recognition Special Lighting Keywords: China reflow oven, Pick and place machine factory, China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer, pick and place machine supplier.

Flason Electronic Co., ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT pick and place machine, smt stencil printer, PCB conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp: 008613691605420, Skype: flasonsmt, Email: sales@flason-smt.

com FAQ 1) This is the first time I use this kind of machine, is it easy to operate? There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ? Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ? 1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !) A.

Consult us about this product on line or by e-mail.

B.

Negotiate and confirm the final price, shipping, payment methods and other terms.

C.

Send you the proforma invoice and confirm your order.

D.

Make the payment according to the method put on proforma invoice.

E.

We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.

Send your order by air or by sea.

5)Why choose us ? A.

Gold supplier on Alibaba ! B.

Trade assurance to US$54, 000 ! C.

Best price & Best shipping & Best service !
