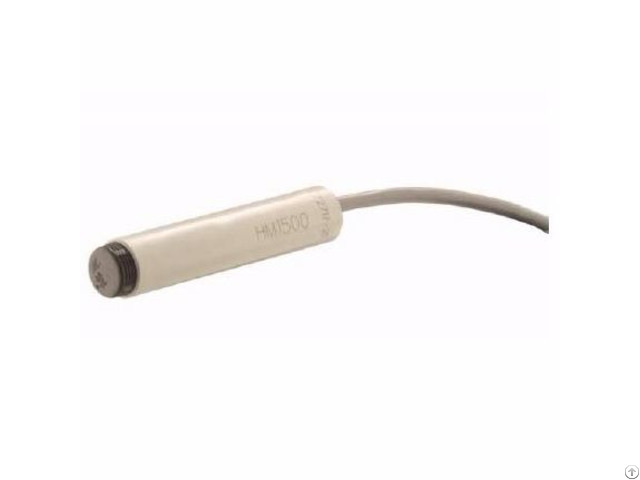

Hm1500lf Probe Style Temperature And Humidity Sensor - China
price: check with company for price
HM1500LF - Relative Humidity Module /
DESCRIPTION
Based on the rugged HS1101LF capacitive humidity sensor, HM1500LF is a dedicated humidity transducer designed for OEM applications where a reliable and accurate measurement is needed.
Direct interface with a micro-controller is made possible with the module's linear voltage output.
/
FEATURES • Small size product
• Product free from Lead, Cr(6+), Cd and Hg
• Humidity calibrated within +/-2% @55%RH
• Typical 1 to 3.6 Volts DC output for 0 to 100 % RH at 5 V DC supply
• Ratiometric to voltage supply from 4.75Vdc to 5Vdc.
• Patented solid polymer structure • Full interchangeability
• High reliability and long term stability
• Not affected by water immersion
• Very low temperature dependence
• Suitable for 3 to 10 Vdc supply voltage
Humidity Sensor Specfic Features
• Instantaneous de-saturation after long periods in saturation phase.
• Fast response time.
• Part could be washed with distilled water.
/
APPLICATIONS
• Industrial
• Process control
/
MAXIMUM RATINGS
Storage Temperature: -30 to 70 °C
Storage Humidity: 0 to 100 % RH
Supply Voltage (Peak): 10 Vdc
Humidity Operating Range: 0 to 100 % RH
Temperature Operating Range: -40 to 60 °C
