Hmc03m Heated Humidity Sensor For Radiosondes And Weather Balloons - China

price: check with company for price

HMC03M Heated Humidity Sensor Description

HMC03M is optimized for short RH response time even at very low temperature in the upper atmosphere.

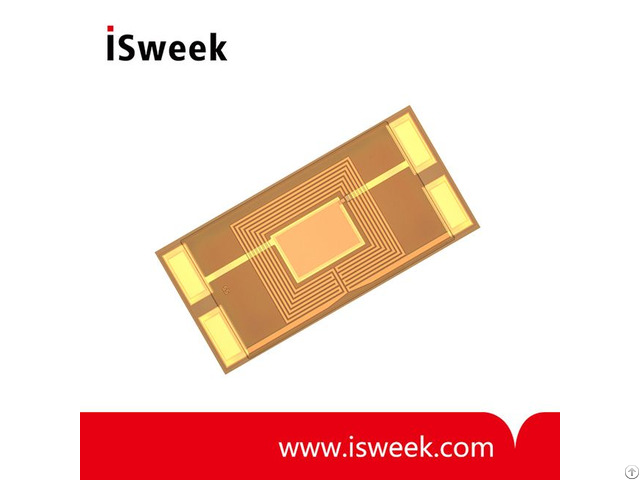

It combines on a silicon substrate a capacitive relative humidity (RH) sensor and a heating resistor (heater).

/

The heater is dedicated for fast recovery of the humidity sensor after condensation or icing.

The construction with the heater positioned all around the RH sensor grants uniform temperature throughout the HMC03M structure, which leads to outstanding measuring performance in high-end weather observation.

/

HMC03M Heated Humidity Sensor Features

• Very short RH response time at low T

• High sensitivity

• Fast recovery after condensation or icing due to sensor heating

• High accuracy thanks to outstanding T uniformity within HMC03M

/

HMC03M Heated Humidity Sensor Technical Data

• Nominal capacitance: 120 ± 40 pF

• Sensitivity: 0.41 pF / % RH

• Working humidity range: 0~100 % RH

• Working temperature range: -80~60 °C (-112~140 °F)

• Linearity error (0~98 % RH): < ± 2 % RH

• Hysteresis: 1.9 ± 0.25 % RH

• Supply voltage: 5 V max (UPP)


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: July 13, 2018

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
