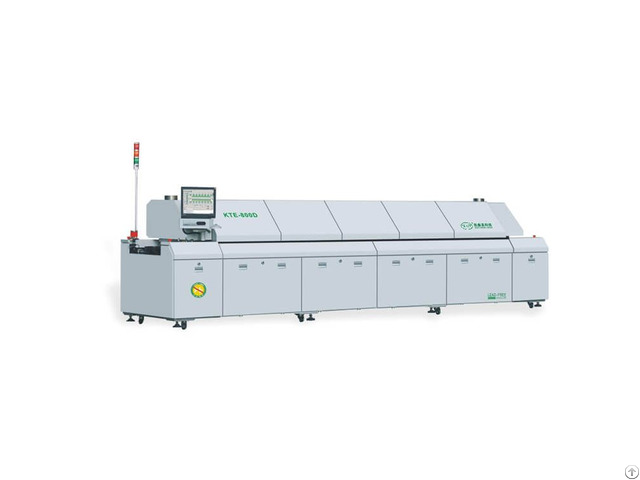

8 Zones Dual Rail SMT Reflow Oven KTE-800D

Dual Rail Conveyor

8 heating zones

Weight Apprx: 2645KG

Dimension: 5378x1539x1490mm

Product description: 8 Zones Dual Rail SMT Reflow Oven KTE-800D, Dual Rail Conveyor, 8 heating zones, Dimension: 5378x1539x1490mm, Weight Apprx: 2645KG

8 Zones Dual Rail SMT Reflow Oven KTE-800D Specifications: Advantage: 1 - Totally meet various requirements for the lead free processing.

2 - WindowsXP operation system, Chinese/English can be swtiched online.

3 - Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.

4 - PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.

5 - Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.

6 - Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.

7 - Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.

Machine Specification Model KTE-800D Control Industrial computer Heating zones qty.

Top 8, bottom 8 Cooling zones qty.

Top 2 Heating zone length 3110mm Rectifying plate Galvanized plate Weight Apprx: 2645KG Dimension 5378x1539x1490mm Exhaust capacity 10㎡/min×2 Color Grey Control system Electricity supply 3P 380V/220V 50/60HZ Temp.

control range Room temp.

～300℃ Total power 70KW Temp.

control accuracy ±1℃(static state) Start power 32KW Temp.

control method PID +SSR drive Consumption power 11KW PCB temperature deviation ±1.5℃ Speed control Inverter adjust Data save All profiles can be saved Warm up time Apprx.

30minute Abnormal alarm High, low temp.

alarm Conveying system Rail structure 2 sectional rails Rail fixed method 1, 4 fix, 2, 3 moving Chain Stuck-free type Conveying height 900±20mm PCB Max.

width 50-400mm Conveying method Rail+ mesh+ chain Component height Top/bottom 25mm Conveying speed 300-2000mm Conveying direction Left to right Lubrication Automatic Cooling system Cooling method Forced air cooling Heating features Heating zones Top 8, bottom 8(3110mm)can meet the need of the peak lead-free technique.

Cooling zones After cool down by air, PCB temp.

is ≤70℃ at the exit.

Warm up time From the normal temp.

to set temp, approximate 30 minutes.

Warm up sequence Warm up from two side, save the power and time Profile transfer time ＜15min Heating zone temp.

control accuracy ±1℃ PCB temp.

deviation ±1.5℃ Empty to full load heat balance respond time ≤20 s
