Htf3223lf Temperature And Humidity Sensor Module - China

price: check with company for price

Htf3223lf Temperature And Humidity Sensor Module

Products Photos Catalog Htf3223lf Temperature Photos Catalog

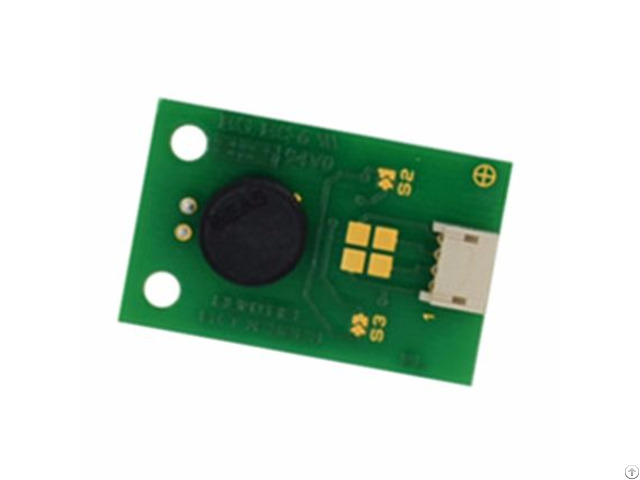

Temperature and humidity sensor module HTF3223

/

Description

Based on the rugged HS1101LF humidity sensor, HTF3223LF is a dedicated humidity and temperature transducer designed for OEM applications where a reliable and accurate measurement is needed.

It features a miniature connector for easy, cost-effective mechanical mounting.

Direct interface with a micro-controller is made possible with the module’s linear frequency output.

/

MAIN FEATURES

• Size and connector type match existing humidity modules.

• Stable, linear proportional frequency output from 10 to 95% RH.

• Calibrated within +/- 5% RH @ 55% RH.

• Optional 10 K +/- 3% NTC temperature sensor (HTF 3223)

• Stable characteristics with temperature.

• High reliability and long term stability

/

HUMIDITY SENSOR SPECIFIC FEATURES

• Instantaneous de-saturation after long periods in saturation phase.

• Fast response time.

• High resistance to chemicals.

• Not affected by water immersion.

• Patented solid polymer structure.

/

TEMPERATURE SENSOR SPECIFIC FEATURES

• High quality thermistor

• Stable

• High sensitivity

/

MAXIMUM RATINGS

Storage Temperature: -40 to 85 °C

Storage Humidity Range: 0 to 100 % RH

Supply Voltage (Peak): 7 Vdc

Humidity Operating Range: 0 to 99 % RH

Temperature Operating Range: -30 to 80 °C


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: May 23, 2017

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
