Htg3515ch Voltage Output Temperature And Humidity Sensor - China
price: check with company for price

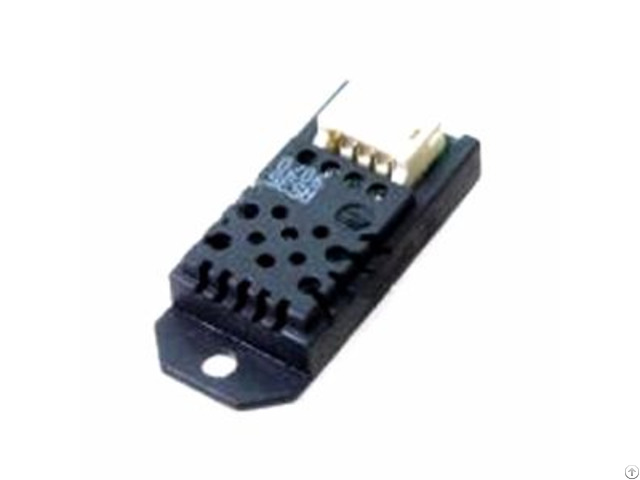

Voltage Output Temperature and Humidity Sensor HTG3515CH /
DESCRIPTION
Based on the rugged HUMIREL humidity sensor, HTG3515CH is a dedicated humidity and temperature plug and play transducer designed for OEM applications where a reliable and accurate measurement is needed.
Direct interface with a micro-controller is made possible with the module’s humidity linear voltage and direct NTC outputs.
HTG3515CH is designed for high volume and demanding applications.
/
FEATURES
• Voltage Supply: 5 Vdc
• Nominal Output @55%RH: 2.401~2.559 V
• Humidity Average Sensitivity: +26 mV/%RH
• Current consumption: 1.2 mA dc
• Humidity Measuring Range: 0~100 %RH
• Humidity Operating Range: 0~100%RH
• Temperature Operating Range: -40 ~110°C
• Suitable for small bulk assembly
• Product free from Lead, Cr (6+), Cd and Hg.
Compliant with RoHS
• Full interchangeability.
Better than +/-3%RH and +/-0.25°C • Humidity calibrated within +/- 3% RH @ 55% RH • Temperature measurement through NTC direct output
• Demonstrated reliability and long term stability • Reliability not affected by repeated condensations
/
APPLICATIONS • Automotive
• Home Appliance
• Printers
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: May 19, 2017
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
