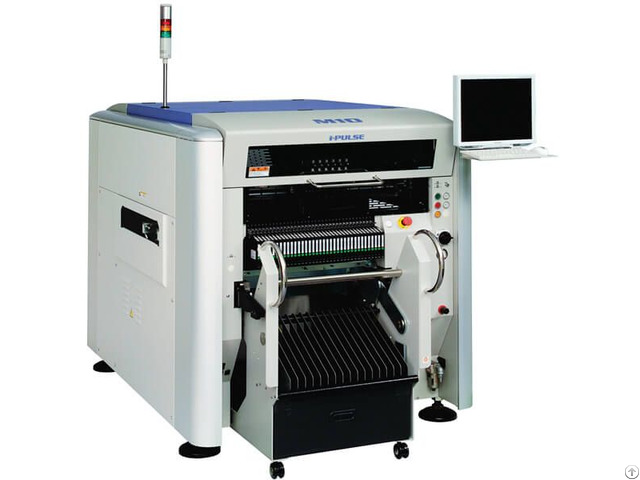

I-Pulse M10 Pick and Place Machine

Optimum speed 30000CPH

Accuracy: CHIP +/- 0.040mm IC +/- 0.025mm

Feeder platform: 72 positions

Product description: I-Pulse M10 Pick and Place Machine INQUIRY

I-Pulse M10 pick and place machine Products Description: Refer to these specifications for the M10:

Feeder platform 72 positions

Maximum PCB size L 740mm x W510mm

Applicable components 01005 (0402mm) ~120mm x 90mm (30mm height) BGA, CSP, oddform, connectors etc

Optimum speed 30, 000CPH

Accuracy CHIP +/- 0.040mm IC +/- 0.025mm The M10 has all the features of its superior but with half the feeder capacity, the M20 represents the next generation in SMT Automation.

Applying the same range of interchangeable feeder banks and tray handlers, the M10 makes an excellent complement to existing iPulse lines and a highly flexible mounter for the placement of fine pitch and tray feed parts.

The greater PCB handling permits production capability that has never before seen in a compact footprint mounter.

The increased component height and overall component dimension capability expands the range of placeable components, making the M10 one of the most flexible and accomplished machines ever presented from iPulse.

Available in 4 and 6 head configurations, the M10 can be custom tailored to your needs.

A maximum of 72 can be fixed on the feeder banks or on changeable banks of 36 feeders each making a fast and easy change over.

The 36 feeder changeable rear bank can be swapped with a 40 tray changer.

The M10 comes with new standard features such as ‘Force Control Function, ’ allowing adjustment and measurement of the downward force applied to components being placed from 5N to 60N.

Placement verification is another standard feature using a downward looking camera, eliminating the need for a separate after placement inspection machine Keywords: China reflow oven, Pick and place machine factory, China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer, pick and place machine supplier.

Flason Electronic Co., ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT pick and place machine, smt stencil printer, PCB conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp: 008613691605420, Skype: flasonsmt, Email: sales@flason-smt.

com FAQ 1) This is the first time I use this kind of machine, is it easy to operate? There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ? Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ? 1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !) A.

Consult us about this product on line or by e-mail.

B.

Negotiate and confirm the final price, shipping, payment methods and other terms.

C.

Send you the proforma invoice and confirm your order.

D.

Make the payment according to the method put on proforma invoice.

E.

We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.

Send your order by air or by sea.

5)Why choose us ? A.

Gold supplier on Alibaba ! B.

Trade assurance to US$54, 000 ! C.

Best price & Best shipping & Best service !
