Iaq 100 P 15x15 Indoor Air Quality Sensor - China

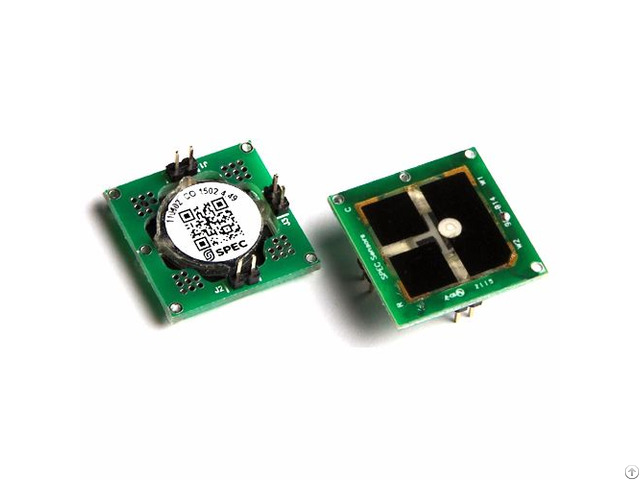

IAQ_100 P Indoor Air Quality Sensor DESCRIPTION

SPEC Sensors’ IAQ_100 is a Screen Printed ElectroChemical sensor component specifically designed for the broad detection of gases associated with poor air quality: sulfides, alcohols, ammonia, odorous gases, and Carbon Monoxide.

/

IAQ_100 P Indoor Air Quality Sensor BENEFITS

• Zero Power Sensor Sensor Circuit - < 10 uW max

• Cold operation - No Heating required

• Rugged Design - Not poisoned by sulfides, chlorides, NH3

• Stable Response - Not affected by humidity, CO2, N2, Ar, most saturated hydrocarbons, hexane

• Small Size& Low Profile - 20x20x3 mm

• Sensitive - In the ppm range

• Easy to Use - Linear Response

• Long Life - 10 years expected life

• Fast Response - < 20 seconds

• ROHS Compliant

/

IAQ_100 P Indoor Air Quality Sensor APPLICATIONS

• Bad Air Quality Detection

• Indoor Air Monitor

• Air Purifier Controls

• Weather Stations

• Internet of Things

• Smart Homes

• Early Fire Detection

• Leak Detection

• HVAC Ventilation Control

/

IAQ_100 P Indoor Air Quality Sensor SPECIFICATIONS

Measurement Range 0 to 100 ppm (calibrated as CO equivalents)

Response Time to 90% < 20 seconds typical Sensitivity 12 +/- 3 nA/ppm (CO equivalents) Expected Operating Life > 5 years (10 years @ 23+/-3C; 40+/-10% RH)

Operating Temperature Range -10 to 40 C (0 to 40 C continuous) Operating Humidity - non-condensing 0 to 100% RH (15 to 95% continuous)

Power Consumption < 50 uW circuit & ambient gas dependent

Zero Drift (Over Temperature Range) +/- 2 ppm (CO equivalents)

Lower Detection Limit 0.1 ppm CO (depends on the gas & electronics)
