ICP5000 Inductively Coupled Plasma Optical Emission Spectrometry

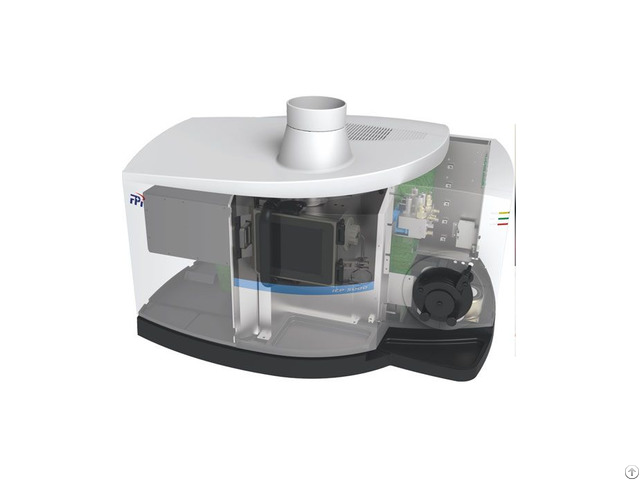

ICP-5000 is a desktop innovative Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES) providing environmental, pharmaceutical, industrial and food safety fields with low cost of analysis and high-performance, which is not only the first full spectrum ICP-OES in China but also one of the leading analytical instruments in the world.

With more than fifty thousand spectrums in library, up to 72 elements can be analyzed simultaneously.

Two-dimensional echelle optical system, free running solid state RF source and high-speed CCD data acquisition enable ICP-5000 the ideal solution for laboratories.

Technical

Optical System

Optical resolution: 0.007nm at 200nm

Pixel resolution: 0.002nm/pixel at 200nm

Wavelength range: 165-870nm

Argon Consumption

Typical 12L/min

Detector

Back-illuminated area-array CCD

Spill-proof

Mega pixels

Noise: 2.0e-rms

RF Source

Free-running solid state RF Source

Power: 700-1600W

Dimension

L x W x H: 935mm×732mm×659 mm

Weight : 98 kg

Power and Environmental

AC 220±10% V, 50~60 Hz

Room Temperature: 10℃-30℃

Relative Humidity: 20 % ~ 80% RH

Power Consumption: ≤4.5KW

ICP5000 Inductively Coupled Plasma Optical Emission Spectrometry Factory China Features Dual View and Echelle Optical System

Stabilized optical system, constant temperature of 36℃, independent air duct.

Flexible configurations, radial view to eliminate matrix interference effectively for complex matrix; dual view to lower detection limit for trace elements analysis, and keep less interference.

CCD Data Acquisition System

High Speed CCD Detector, back-illuminated, independent encapsulation.

High response in UV band, available for Al 167.

Tertiary TEC refrigeration with low noise signals and high dynamic range.

Spill proof, high resolution with mega pixels.

condensation

Water cooling and argon purging prevent CCD .



Precise Plasma and Torch Chamber

Free-running 27.12 MHz solid state RF source.

Frequency conversion design enables automatic plasma match.

Water cooling, power and temperature interlock protection.

Torch Chamber enables viewing of the plasma and inspecting.

Integrated Argon Controller with Low Gas Consumption

Patented and intelligent multi-duct optic purging.

Compact, efficient and well-sealed optic design.

Optimized torch design to save cooling gas.



Smooth Sampling System

Peristaltic pump with three-channel 12 roller.

3 line MFC control plasma gas, precision≤0.5%.

High precision purge gas monitoring.

Demountable Torch

Different central tubes for various applications.

Automatic collimation to assemble.

Automatic air flow connection with no leakage.

Easy assemble with bayonet.
