Ingke Ykgd 8309bnl 100 Percent Cross 7499111446 We Rj45 Modular Jack - China

price: 1.00 Dollar US$

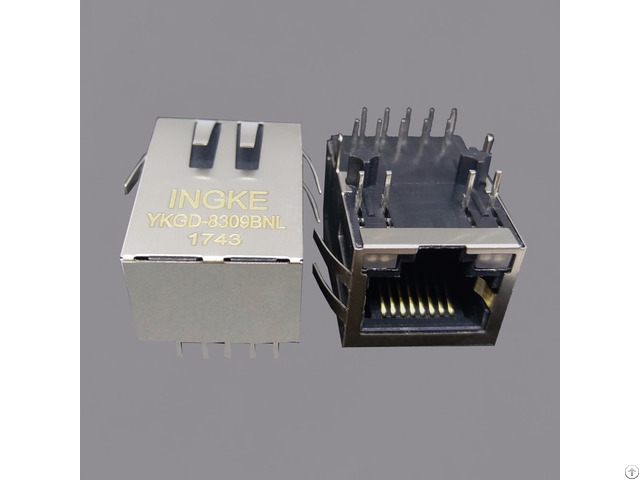

Ingke Ykgd 8309bnl 100 Percent Cross 7499111446 We Rj45 Modular Jack

Products Photos Catalog Ingke Ykgd 8309bnl 100 Photos Catalog

WE Part Number : 7499111446

Made in China: YKGD-8309BNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Yellow, Green - Yellow, Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic

Ingke Technology Mass production of the following models;

74980111211 74980111211 74980111211 7499010122 7498011122 7499111121A 7498011122R 7498011122R

7498011122R 74990111215 7499211121A 7499210121A

7499211125 7498111001 7498111001 7498111001

7499111446 7499111221A 7499111447 7499151120

7497110616 7499010121A 7499011121A 74990100011A


Company Contact:


  • Phone: +8615920079718

  • Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

  • Email: Email


Published date: December 20, 2017

  • Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

    Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

    Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

    Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
