Insulation Ethernet Magnetic Transformers Single Phase 23z105smfnl - China

price: check with company for price

23Z105SMFNL Ethernet Magnetic Transformers Insulation Transformer PRODUCT DETAILS: # ROHS COMPLIANT.

# HEADER : PHENOLIC WITH FLAMMABILITY RATING UL 94V-O OR BETTER.

# STORAGE TEMPERATURE : -20 TO +125 # COMPLIANCE TO J-STD A.

J-STD-002: SOLDERABILITY AT 245 REFLOW PROFILE B.

J-STD-020: LEVEL 1, NO MOISTURE SENSITIVE C.

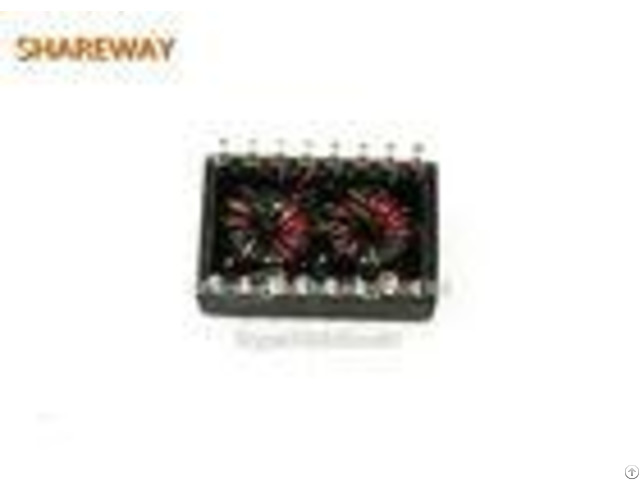

J-STD-075: R7, 245 MAXIMUM THROUGH REFLOW SOLDER ELECTRICAL CHARACTERISTICS AT +25 UNLESS OTHER SPECIFIED - - - - PARAMETER | SPECIFICATIONS | OPERATING TEMPERATURE | 0 TO +70 | POLARITY | PER SCHEMATIC | TURNS RATIO | ( 1-16 ): ( 2-15 ): ( 3-14 ): ( 4-13 )=1: 1: 1: 15% ( 5-12 ): ( 6-11 ): ( 7-10 ): ( 8-9 )=1: 1: 1: 15% | ISOLATION RESISTANCE (IR AT 500 VDC) | 10G OHM MIN | DC RESISTANCE | 0.4 OHMS MAX | LP | 68 uH MIN ( MEASURED AT 100KHz, 20 mVRMS ) | LL | 0.25 uH MAX ( MEASURED AT 100KHz, 20 mVRMS ) | BETWEEN CHANNEL ISOLATION | 500 VAC MIN @ 60 SECONDS | IMPENDANCE ( 1-16 )&( 8) | 10-20 MHz | 30 MHz | 70-100 MHz | 700 OHM MIN | 600 OHM MIN | 200 OHM MIN | - - - - 23Z105SMFNL Ethernet Magnetic Transformers Insulation Transformer PRODUCT PICTURE 23Z105SMFNL Ethernet Magnetic Transformers Insulation Transformer HOW TO ORDER 1 - Please send me your datasheet or part number you need.

2 - We will offer the replacement quotation for your reference 3 - The free samples are available for your approval.

4 - After sample testing, we will step into the mass order.

5 - The Proforma Invoice will send for your confirmation 6 - After the goods finished, we send the goods to you and tell you the tracking number.

7 - We will track your goods until you receive the goods.

Remarks: 1 - Sample orders are avaliable.

2 - Price is negotiable for orders of large quantity.

3 - Customized orders (OEM/ODM orders) are avaliable.

4 - Contact us for available flavors list.

International Certifications: 1 - ISO9001: 2008 2 - UL 3 - Reach 4 - RoHs Our service: 1 - 100% tested before shipping 2 - Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, CoilcraftSame quality but better price 3 - Free sample available 4 - Provide new design for customer


Company Contact:


  • Phone: 86-0755-32932627

  • Address: C711 HUAQIAOXINCUN, MINZHI TOWN , LONGHUA NEW DISTRICT , 518131 , SHENZHEN ,CHINA, Shenzhen , guangdong , China

  • Email: Email


Published date: January 8, 2018

  • Business Description: Established in 1998, we have around 500 staff at present.

    With the abundant productive capacity , we are able to delivery the goods within the short time.

    Moreover, we can provide the professional complete solution for PoE appliication.
