Intermediate Frequency Generating Set - China

One set of 4 KW asynchronous motor (3 phase, 50Hz, 380V, speed 1430 -1440r/min)

One set of 10kvA Synchro generator is an intermediate frequency wide voltage separately excited generator.

(125Hz, 3phase, 20- 240V, power factor: 0.3)

One set of control cabinet with voltage regulator

One set of connection parts.

(such as chassis, coupling and so on).

Main technical data and operationg condition:

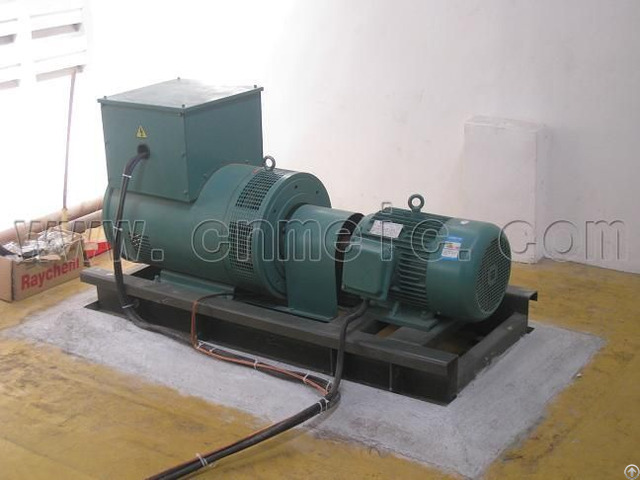

Generally, the main body of a M+G set will be fixed on a steel frame chassis .

Speed range of asynchronous motor : 1430-1440rpm when 4 grade running.

Synchro generator is a 10 pole intermediate frequency wide voltage separately excited generator.

(when the power supply frequency is 50Hz)

Generator excitation is separately excited way ：It can stabilivolt running under given voltage condition.

(scorp: voltage is 20 - 240 under 125Hz and Continuous adjusted setting).

Rated output power: (125Hz): 3 phase, 10kvA, 20-240V, power factor 0.3 (hysteresis).

Power factor: 0.4 (hysteresis)

Class of insulation: B

Class of Protection : IP44

Installation type: IMB3

Cooling : IC01
