Ip 65 P4 Outdoor Rental Die Casting Aluminum Led Display - China

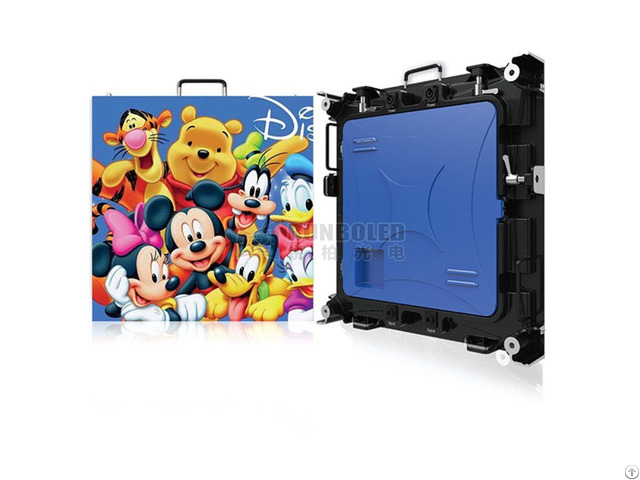

IP 65 P4 Outdoor Rental Die-Casting Aluminum LED Display

Full Color P4 Outdoor Wall

P4 Outdoor Rental LED Display is one of Runbo’s small pitch outdoor display products.

With its good quality and high resolution which are widely used for some small sizes outdoor screens.

It is widely used for outdoor events rental, conference rental, wedding ceremony, musical concert and so on.

With high refresh rate over 3840 hz, enables no scanning lines for the screen when shooting by cameras.

Features of our Color Uniformity LED Display:

1 - Die-casting aluminum cabinet with light weight

2 - Fast lock for quick installation, help saving time for events arrangement.

3 - Seetronic connectors for power and data, making sure the long lifetime of plug in and plug out.

4 - High quality raw materials for screen like nationstar lamp or kinglight lamp with ICN 2153 for high refresh rate.

5 - Very good flatness for led screen installation

Specification of High Brightness LED Display:

Parameter Technical of P4 Outdoor Rental LED Screen with Die-casting Aluminum Cabinet

Item Model Parameter

LED Module Info.

Pixel Pitch P4 Outdoor Rental LED Lamp SMD1921/SMD2525 IC Driver MBI5124/ICN2153 LED Module Size 256*128mm LED Module Resolution 64*32dots Color Temperature 3000-9000K Drive Mode 1/8 scan

LED Cabinet Info.

Cabinet Size 512*512*mm or 768mm x 768mm Cabinet Resolution 128*128dots /192*192dots Cabinet Material Die-casting Aluminum Cabinet LED Module Quantities 2*4=8pcs /3*6=18pcs Cabinet Net Weight 8kg/pc / 11.5 kg/pc

LED Display Info.

Best Viewing Distance 4m-100m Viewing Angle H: 140°/ V: 140° Pixel Density 160000dots/㎡ Brightness 800-1000nits/sqm Max.

Power Consumption 1200W/㎡ Ave.

Power Consumption 400W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -40℃--+60℃ Storage Temperature -30℃--+80℃ Input Voltage AC110V/AC220V Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 10, 000hours Certificate CE, CCC, FCC, ROHS, ISO9001 Tags:

High Resolution LED Display

Company Contact:

• Posted By: Shenzhen Runbo Led Co.,Ltd.

• Phone: 0755-23870558

• Address: 4th Building Baiwang Second Industrial Park Baimang Village, Xili, Nanshan, Shenzhen, shenzhen , Guandong , China

• Email:

• Website: https://www.runboledscreen.com/

• Business Description: Shenzhen Runbo Led Co.,Limited was established in 2013, is a reliable manufacturer in production, R&D, sales in China, specialized in high quality, high refresh outdoor & indoor led video visual screen, control system, video processor and so on.

  After 6 years development, we now become a leading led screen supplier in China, now our factory equipped with modern automatic assembly line, with Sony high-speed placement machine, YAMAHA high-speed SMT machine, full automatic solder paste printing machine and a group of professional production equipment, which is to keep the quality and provide the led cabinet to the customers with a short time after order confirmation.

  We have a series of full-color LED Display products, including led indoor full color led screen with P1.2/P1.5/P1.6/P1.8/P1.9/ P2/P2.5/P2.6/P2.9/P3/P3.9 1/P4/P4.8/P5/P6/P7.62/P10 and outdoor led video visual display with P3/P3.91/P4.

  /P4.81/P5/P6/ P8/P10, also including with transparent led screen with P3.91/P7.81/P10.4, tax led sign with P4/P5/P6, football stadium with P6/8P10/P12.5, Totem pole led display with P4/P5/P6/P8 for street advertising display, Indoor Poster standing led cabinet with P2/P2.5/P3, LED DJ booth, Flexible led module with P2/P2.5/P3/P4/P5 and so on.

  We here can supply all that you want.

  RUNBO LED focused on the led video wall products with professional assembling, aging test to keep the high quality before delivery to the customers.

  Therefore, all our led panel will have CE, ROHS, FCC certificates, our factory would have ISO9001/ISO2000 standard certificates.

  With these certificates, our products now export to many countries, including Malaysia, Korea, South Africa, Kenya, Nigeria, India, Cambodia, Bangladesh, Italy, Germany,Thailand, The United States, Vietnam, Chile, Peru, Spain, Argentina, Colombia, Mexico,Kuwait and so on.

  According to the led display business development, RUNBO LED now existed with sales department, engineering department, finance department, R&D department, logistics department, after-sales department, which is committed to provide a good service and good quality led panel to our customers.

  The advantages of our pantalla led:

  1 - Environmental protection.

  2 - QC to inspect the quality.

  3 - Energy-saving, low power consumption.

  4 - Real raw materials of led lamp, IC Driver, power supply to supply.

  5 - Long lifespan with 2 years warranty at least.

  6 - Safe and convenient assemble and dismantle.

  The advantages of R&D team:

  1 - Great LED engineer to research and design the led cabinets with new pixel pitch.

  2 - At least develop a new led screen during three months.

  3 - Will provide professional led media panel solution for the big project.

  The advantages of production workshop:

  1 - Obtain more than 20pcs high-speed SMT machines from Japan Sony and Yamaha.

  2 - Each steps from the LED Lamp-LED Module-LED Cabinet-LED Display will have professional workers to inspect and check and quality before delivery to the clients.

  3 - LED modules, will do aging test with 48 hours at least, led cabinets, will do aging test with 72 hours before delivery.

  For RUNBO LED, all what we done was to provide the best led billboard to our customers, which reduce the maintenance cost from the customers in the future.
