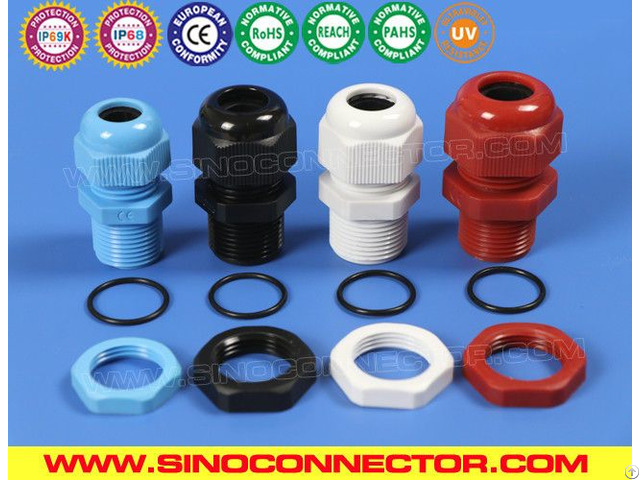

Ip68 And Ip69k Liquidtight Polyamide Cable Glands - China

(1) Raw Material:

* Sealing Nut, Locknut & Body: UL-approved new Polyamide66, 94V-2 (94V-0 is optional).

* Seal & O-ring / Washer: oil-resistant NBR (weatherproof EPDM, Natural Rubber & Silicone also available on request) (2) Standard Colors:

Light-grey RAL7035, black RAL9005 (also available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request).

(3) Protection Degree:

IP68 (only if assembled with O-ring within its specific cable range).

(4) Operation Temperature:

Static: -40 ℃ to 100 ℃, short-term: 120 ℃.

Dynamic: -20 ℃ to 80 ℃, short-term: 100 ℃.

(5) Certificates & Approvals: CE, ROHS, PAHS, REACH, SGS & IP68 - All our earth friendly non-metallic cable glands comply with the ROHS, PAHS, REACH directives of European Union.

(6) Quality Grade:

High & stable quality can ensure 8-15 years of long service life for indoor applications & at least 5 years of long life for outdoor applications (ordinary quality also available on request).

(7) Main Features:

Waterproof & liquid tight, resistant to weak acid & alkaline, corrosion-resistant, UV stabilized, anti-aging, insulating, durable, long-life, etc.

(8) How to Install:

Mount gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position.

(9) Application Areas:

With unique design, wide cable clamping range & excellent resistance against tensile strength, Polyamide Cable Gland (Sealing Gland.

Cord Grip Connectors.

Prensa-cabos nylon.

Prensa cabos plasticos.

Prensa cabos de poliamida.

Prensacables de poliamida.

Pasacables.

Kabelverschraubungen mit Knickschutz / Biegeschutz, Kabelwartels polyamide, Prensaestopas aislantes) are widely applied for fixing and connecting cables or wires to provide effecitve protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, monitoring cameras, plant engineerings, installations, meters and instruments, etc.

(10) Specifications Available:

* PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48, PG63.

* M10x1, M12x1.5, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M24x1.5, M25x1.5, M27x1.5, M30x1.5, M32x1.5, M36x1.5, M40x1.5, M50x1.5, M63x1.5, M75x2.

* NPT1/4", NPT3/8", NPT1/2", NPT3/4", NPT1", NPT1-1/4", NPT1-1/2".

* BSC1/2", BSC5/8”, BSC3/4", BSC1", BSC1-1/4", BSC1-1/2", BSC2".
