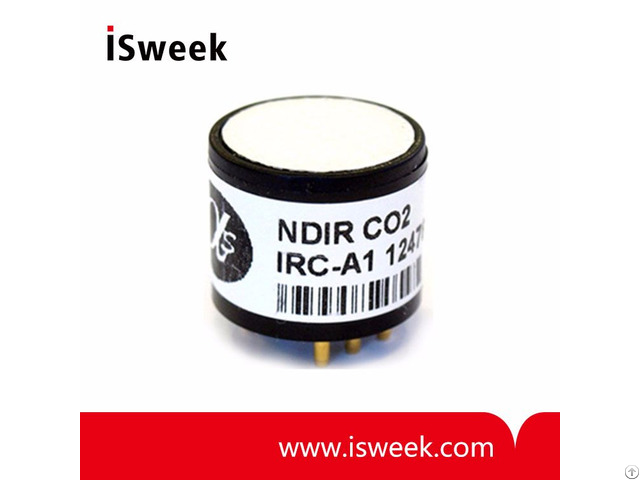

Irc A1 Infrared Carbon Dioxide Co2 Sensor Pyroelectric Detector - China

price: check with company for price

IRC-A1 Infrared Carbon Dioxide (CO2) Sensor Description

Alphasense CO2 and Methane infrared sensors are supplied in the industry standard miniature (20mm diameter) gas sensor housing.

Patented optics give the best signal to noise ratio of any 20mm diameter NDIR and universal linearisation constants allow easy implementation.

The on-board temperature sensor allows for software compensation, including ideal gas law correction.

CO2

The IRC-A1 with dual channel pyroelectric detector.

This CO2 sensor is designed for IAQ, safety, combustion and high CO2 process control applications.

Application notes explain linearisation, temperature compensation and circuitry.

The IRC-A1 cover the entire concentration range of measurement, simply implement the appropriate linearisation constants in software for your required range:

IAQ: 0 to 5, 000ppm CO2

Safety: 0 to 5% CO2

Combustion: 0 to 20% CO2

Process control: 0 to 100% CO2 IRC-A1 Infrared Carbon Dioxide Sensor

Range: 0-5000ppm, 0-5%vol, 0-20%vol, 0-100%vol FS Resolution: 15ppm, 100ppm, 500ppm, 0.5%vol Accuracy: 1%FS, 1.5%FS, 2.5%FS, 4%FS Response Time (t90): < 40s @ 20°C ambient MTBF: > 5 years Operating Temperature Range: -20°C to +50°C (linear compensation from -10 to 40°C)


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: November 20, 2017

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
