J20 0115nl Rj45 Modular Jack For Cat 5 6 Fast Ethernet Cable Or Better Utp - China

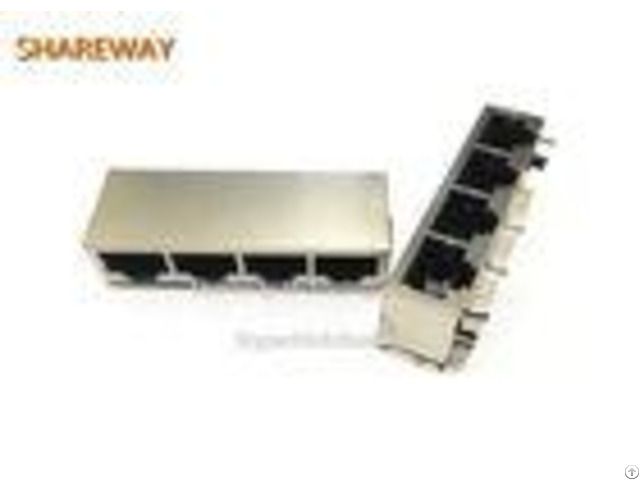

J20-0115NL RJ45 Modular Jack use for CAT 5 & 6 Fast Ethernet Cable or better UTP Product Description: 100 Base-TX (Fast Ethernet) RJ45 2x6 Integrated Connector Module (ICM) with or without LEDs - Designed to support Switch and Gateway applications.

Features and Benefits: 1 - RoHS peak wave solder temperature rating 260C 2 - Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP 3 - Internal magnetics are 100% electrically tested for HI-POT and functionality 4 - Internal magnetics options available 5 - 350H minimum OCL with 8mA bias current 6 - High performance for maximum EMI suppression Electrical Specifications @ 25C - Operating Temperature 0 C to 70C 1 - Part number: J20-0115NL 2 - NO.

of ports: 12 3 - LEDs L/R: G/Y, G/Y 4 - Insertion Loss (dB TYP): # 1-65 MHz: -1 5 - Return Loss (dB TYP) 100 (15) # 1-10 MHz: -20 # 10-30 MHz: -16 # 30-60 MHz: -12 # 60-80 MHz: -12 6 - Crosstalk (dB TYP): # 1-30 MHz: -40 # 30-60 MHz: -35 # 60-100 MHz: -30 Common Mode Rejection (dB TYP) # 1-50 MHz: -30 # 50-150 MHz: -20 J20-0115NL RJ45 Modular Jack use for CAT 5 & 6 Fast Ethernet Cable or better UTP J20-0115NL RJ45 Modular Jack use for CAT 5 & 6 Fast Ethernet Cable or better UTP J20-0115NL RJ45 Modular Jack use for CAT 5 & 6 Fast Ethernet Cable or better UTP HOW TO ORDER 1 - Please send me your datasheet or part number you need.

2 - We will offer the replacement quotation for your reference 3 - The free samples are available for your approval.

4 - After sample testing, we will step into the mass order.

5 - The Proforma Invoice will send for your confirmation 6 - After the goods finished, we send the goods to you and tell you the tracking number.

7 - We will track your goods until you receive the goods.

Remarks: 1 - Sample orders are avaliable.

2 - Price is negotiable for orders of large quantity.

3 - Customized orders (OEM/ODM orders) are avaliable.

4 - Contact us for available flavors list.

International Certifications: 1 - ISO9001: 2008 2 - UL 3 - Reach 4 - RoHs Our service: 1 - 100% tested before shipping 2 - Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, CoilcraftSame quality but better price 3 - Free sample available 4 - Provide new design for customer

Company Contact:

• Posted By: SHAREWAY TECHNOLOGY CO., LTD.

• Phone: 86-0755-32932627

• Address: C711 HUAQIAOXINCUN, MINZHI TOWN , LONGHUA NEW DISTRICT , 518131 , SHENZHEN ,CHINA, Shenzhen , guangdong , China

• Email:

• Website: https://www.smpsflybacktransformer.com

• Business Description: Established in 1998, we have around 500 staff at present.

  With the abundant productive capacity , we are able to delivery the goods within the short time.

  Moreover, we can provide the professional complete solution for PoE appliication.
