Japanese Technology Linearmotor Servo High Force Direct Linear Motor - China

Series: LMF040

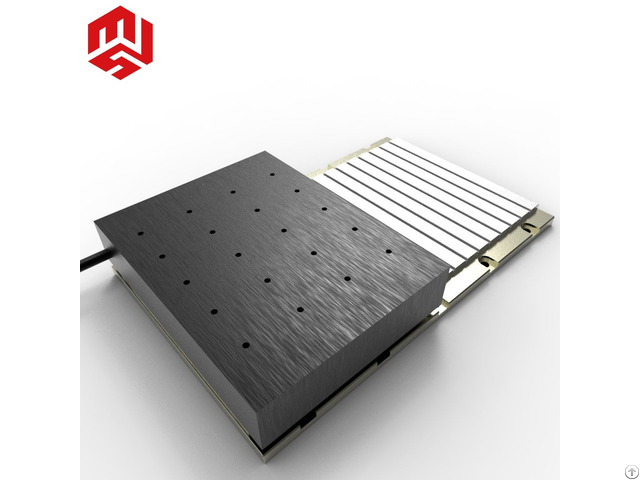

Japanese technology linearmotor servo high force direct linear motor

Our high force and size iron core linear motor.

Warranty: 3months-1year


Place of Origin: Shanghai, China

Brand Name: SMJ

Usage: Laser processing machines

Type: SERVO MOTOR

Torque: as requested

Construction: Permanent Magnet

Commutation: Brushless

Protect Feature: Totally Enclosed

Speed(RPM): fast response speed

Continuous Current(A): 2.4A.

4.8A

Efficiency: IE 1

Frequency: 50HZ/60HZ


Motor type: iron core

Continuous force: 266.4.552.9 N

Peak force: 1043.4.2165.8 N

Force constant: 111.115.2 N/Arms

Thermal Resistance: 0.714.0.357 ℃/W

Hall sensor: optional

Temperature sensor: optional

Phase: Three-phase

MOQ: 1 Pcs Continuous force 266.4.552.9 N | Peak force 1043.4.2165.8 N * Iron core technology

* High force constant and low thermal resistance

* Low cogging force

* Hall sensors (optional and pls advise if require)

* Motor coils include a temperature sensor(optional and pls advise if require)

* High force and stiffness We have four different series including LMF010, LMF020, LMF030, LMF040 in a wide range of sizes and coil lengths.
