Kxm 301 Limit Switch - China

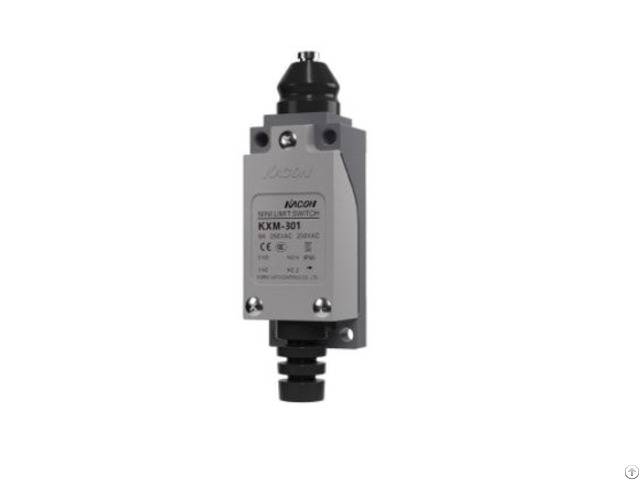

Kacon KXM-301 with high mechanical strength, corrosion resistance.

Push plunger type limit switch, with forced segmentation contact function (NC contact only), the hinge is machined at an acute angle to prevent the handle from slipping and idling, and the OT angle of the extended pendulum is min.

90°.

Cam wear resistance, high self-lubricating.

Built in switch with embossed surface, conductivity up to 40 IACS.

With IP66 protection rating.

Certification

CE/CCC/KC

Specification

With force disconnection function.

Impact resistance: Durability Max.

98m/s²(about 10G) Malfunction Max.

294m/s²(about 30G).

Returning spring is made of 304 stainless steel, after heat aging treatment, elastic fatigue recovery is good, special grease.

Accessories: Rubber seal ring, flat gasket, cable lock, nuts, screws, bolts are provided.

Built in double reed

Gold plated contact can be customized

With ground screws

Customization

Operating environment of minus 40℃.

Gold embossed surface contact can be customized.

With indicator lamp, intuitive(LED and neon lights): 12~24 AC/DC; 100~240 AC/DC.

Equipped with jumper.

The length and the angle of the operating lever can be customized

Housing Colors: dark blue, grey(universal type)

Material

Base: Zinc alloy

Contact: Silver alloy, with high conductivity：40 IACS%

Contact base: PA66

Rotating shaft: Stainless steel metallurgical powder

Lever: Copper nickel plated

Panel cover: PA66

Wiring protective sleeve and rubber seal: NBR

Leaf spring: Beryllium bronze

Moving reed: Phosphor bronze

Brass nut: Injected with the bakelite casing

Product Use Cases

Factory machines, subway, sewer, shipping machinery, cement factory, etc.
