Lcd Control Co2 Laser Cutting Machine Water Cooling For Rubber Wood - China

price: check with company for price

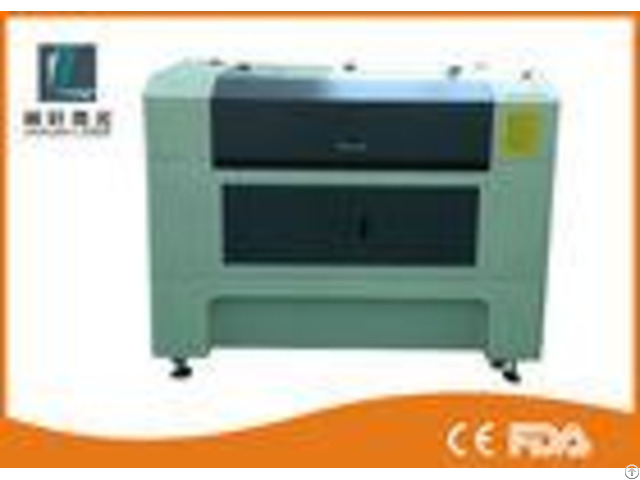

Lcd Control Co2 Laser Cutting Machine Water Cooling For Rubber Wood

Products Photos Catalog Lcd Control Laser Photos Catalog

LCD Control Water Cooling CO2 Laser Cutting Machine Hot Stamping Template Line Motion Control System Features 1 - Internationally advanced accessories: Taiwan square linear rails, high quality stepper motor, focus lens.

2 - Support U disk, USB cable, Internet, three transmission mode, 1GB of memory, can store more than 800 files.

3 - Working table: open blade with special treated material.

never fray and easy operation, suitable for all kinds of hard materials.

4 - Steady chassis: stability and precision during high speed work.

5 - Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced PCI controlled 3-phrase stepper motor to ensure the working accuracy.

Application Applicable Industries: Garments sampling, large format tailoring, leather industry, shoe making, decoration, furniture, advertisement, packing and printing, molding and art crafts industries, etc.

Applicable Materials: Acrylic, organosheet, board, bamboo products, paper, glass etc nonmetal material and various kinds of character, graph, image, trademark.

Machine specification - - - - Model | LX-1060 | LX-6040 | LX-1390 | LX-1610/1612/1325 | Laser | CO2 glass sealed laser tube or metallic sealed laser tube | Laser power | 40W/60W/80W | 60W/80W/100W/120W/150W | Work platform size | 1000x600mm |600400mm | 1300900mm | 1600x1000mm/1200mm | 1300x2500mm | Engraving speed | 1000mm/s | Cutting speed | 500mm/s | Worktable | honey-comb or aluminum knife optional | Precision of positioning | 0.025mm | Working temperature | 5-30 C degree | Control System | RDCAM DSP Control system | SoftWare | Laser Cut software PLT, BMP, DXF, DST, TIF format supported CorelDraw, AutoCAD Software Compatible | Transmission | Belt transmission (Standard) Or ball screw transmission optional for extra cost | Linear Rail | Taiwan HIWIN linear rail | Motor type: | Japan Stepper motor | DPI | 2500 | Recommended spare parts | Laser tube, Focal lens, Reflection Mirror | Power supply | 220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional | Machine dimension (mm) | 1600*1100*1300 | 1600*800*1050 | 1950*1470*1300 | 2280*1730*1180 | G.

W | 230KG | 260KG | 470KG | 550KGS | - - - - Sample show Packaging & Delivery 1 - Wood case or as per required.

2 - The delivery lead time would be 7-15 days against down payment.

3 - As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder Competitive Advantages 1 - We offer high quality products at competitive price in quick delivery.

2 - 100% custom pass guaranteed.

3 - Good after-sale service.

4 - Flexible and Untraceable payment terms.


Company Contact:


  • Phone: 86-27-87436808

  • Address: ROOM 601,NO. 20 BUILDI NG,GUANGGU NEW POWER I NDUSTRIAL PARK,GUANGGU  SECOND ROAD NO.219,JIAN GXIA DISTR, WUHAN , hubei , China

  • Email: Email

Published date: May 3, 2018

  • Business Description: Wuhan Linxuan Laser Co., Ltd is a high-tech enterprise in Wuhan East Lake Development Zone , we are specializing in producing, developing and selling laser marking machine, laser welding machine, laser cutting machine, etc.

    It is Chinese industrial laser processing equipment pioneer.
