Lcd Motherboard Repair Machine Wds 650 Led Rework Station On Big Promotion - China

1 - Widely used in the Chip Level Repair in laptop, PS3, PS4, XBOX360, Moblie Phone, etc.

2 - Rework BGA, CCGA, QFN, CSP, LGA, Micro SMD, LED etc.

3 - Automatic Romoving, Mounting and Soldering.

4 - HD Optical Alignment system for precisely mounting BGA and Components.

5 - Laser Positioning function for Fast Positioning BGA Chip and motherboard.

6 - BGA mounting accuracy within 0.01mm , Repair success rate 99.9%.

7 - Superior Safety Functions, with Emergency protection.

8 - User-friendly operation system.

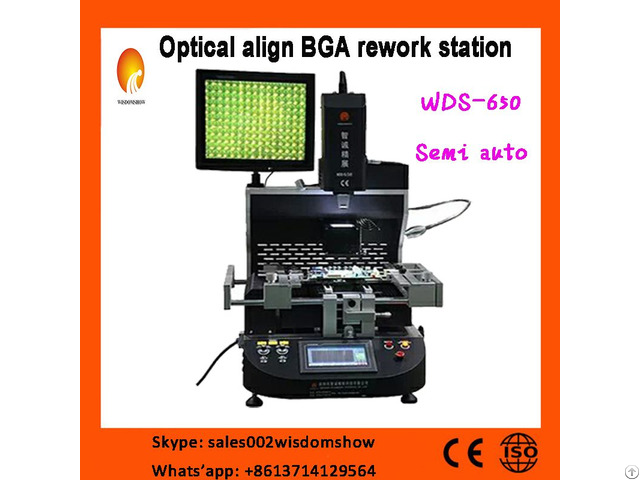

WDS-650 automatic BGA Rework Station Main features:

Easy operate, 100% success rate.

1 - Auto pick and remove function, do not need joystick.

2 - High resolution optical alignment system and HD camera system + 3 axies micro adjust, accurate bga positon, ensure precise mounting.

3 - Built-in infrared laser position, fast positioning for PCB.

4 - Nozzle, equiped with many size nozzles, which also can be customized.

5.3 temperature zones controlled independently, the upper and lower is hot air, the 3rd is IR pre-heating.

7 - With a powerful cross-flow and 3 external temp sensor socket

8 - High sensitive touch screen, Panasonic PLC control.

9 - Alarm function and double over-temperature protection.

Position : V-groove+laser position+universal fixture.

WDS-650 BGA Rework Station Technical parameter

1 - Total power 5300W

2 - Upper heating power 1200W

3 - Lower heating power Second temperature zone 1200W, Third temperature zone2700W

4 - Power supply (Single Phase)AC 110V/220V±10 50Hz±3 5.2KVA

5 - Overall dimension L880*W880*H720mm ( not include the display holder)

6 - Locating way V-shaped groove, PCB holder can adjust any direction of X, Y

7 - Temperature controlling

(high precision K-sensor)(Closed Loop), UP and down can test the temperature independently

8 - Large PCB size 450*430mm

9 - Small PCB size 10*10mm

10 - Chip zoom multiple 2-50 multiple

11 - Weight of machine 85kg
