Leakage Circuit Breaker Bh Type - Taiwan

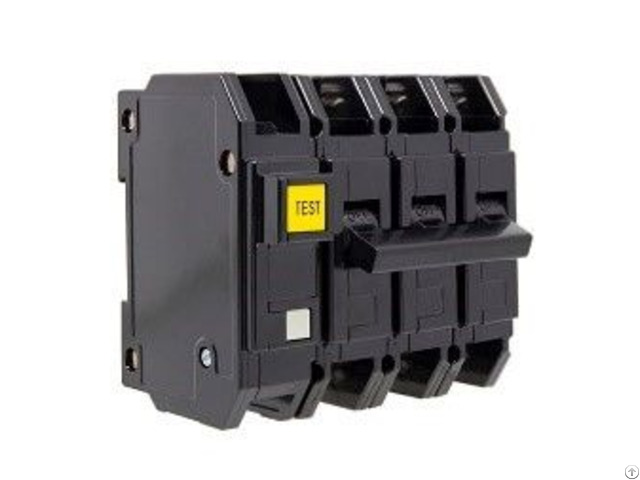

Leakage Circuit Breaker with Overload Protection for Wiring

BH Type Overload with Leakage Protection (AES series & AEP series & AE series) There are many types of circuit breakers available on the market, including the RCBO, which is a three-in-one circuit breaker that can detect leakage, overload, and short circuit problems simultaneously.

The AES, AEP, and AE series are all examples of RCBO circuit breakers with different specifications and features.

The AES series is a framework capacity A RCBO circuit breaker with three models: AES, AESH, and AESS.

They all support 1-phase 2-wire and 1-phase 3-wire/3-phase 3-wire connection types with a rated voltage of 110/220V or 220V and a rated current of 15, 20, 30, 40, or 50A.

Their rated breaking capacity is 5kA at 110V or 220V.

They have a rated sensitivity current of 30mA and a non-actuating current of 1/2 the sensitivity current.

The tripping time is within 0.1 seconds, and the tripping mechanism is thermal-magnetic.

The dimensions and weight of the three models vary slightly and can be selected according to specific needs.

Company Contact:

• Posted By: Arlis Electric Products Co., Ltd.

• Phone: 886-2-26943330

• Address: No. 13, Ln. 90, Nanyang St. Xizhi Dist.,, New Taipei City, Taipei , Taiwan

• Email:

• Website: https://www.arlis.com.tw

• Business Description: "Founded in January, 1987, Arlis Electric Products has been manufacturing circuit breakers with a history of pushing the boundaries of technology.

  At the initial stage, Arlis Electric Products specialized in making small-sized NoFuse breakers (NFB), then expanded the coverage manufacturing MCCB, ELCB and GFCI products, successfully landed clients from industries of housing, architecture, foundation engineering, public construction, home electronics, information technology and integrated power switch.

  We provide updated solutions that comply with regulations to our clients.

  From home appliances to industrialization techniques, Arlis Electric Products gained trust and confidence from clients in various countries with continuously enhancing facilities and talents, in order to provide solid one-stop solutions including research & development, designing, manufacturing, marketing and customer services.

  "
