Led Rgb Touch Controller - China

Brief introduction

T3 is the 2.4GHZ RF wireless synchronization RGB controller which adopts LTECH multiple global initiate technology.

The control system consists of two parts, the RF remote control and receiver; realize the signal synchronization on unlimited receivers within effective distance, a very good solution for the LED project needs sync control wirelessly.

User-friendly full-color touch wheel for color selection, unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote control.

RF remote control can realize long-range control switch, pause, changing modes, changing speed and the brightness, etc.

Built-in more than 32 changing modes, you can store the changing modes in the short cut key what you like, which not only can call at any time, but also can combine into a program to loop playback.

Performance Features

● Adopt 2.4GHZ RF wireless transmission technology, which is applicable for license and patent free worldwide.

● Built-in with dual core driver, make it 10 times of processing speed.

can process the wireless data transmission in complicated and multiple levels.

● Advanced RF wireless sync control technology, no sync signal wire between receivers, sync capability is stable and reliable.

● Remote controller adopts the capacitive touch control technology on the full color wheel, make the LED color selection more user-friendly.

● Any operation on the remote control or any receiver can command all receivers to work wirelessly and synchronously.

● Color changing scene mode and preset storage function.

● USB charging port.

Applications:

1 - Architectural decorations: Commercial center, airport, Metro station.

2 - Indoor decorations: Hotel, Plaza, Restaurant, Bar and home decoration.

3 - Commercial sign and billboard

4 - Other places that uses RGB LED light.

Product parameter

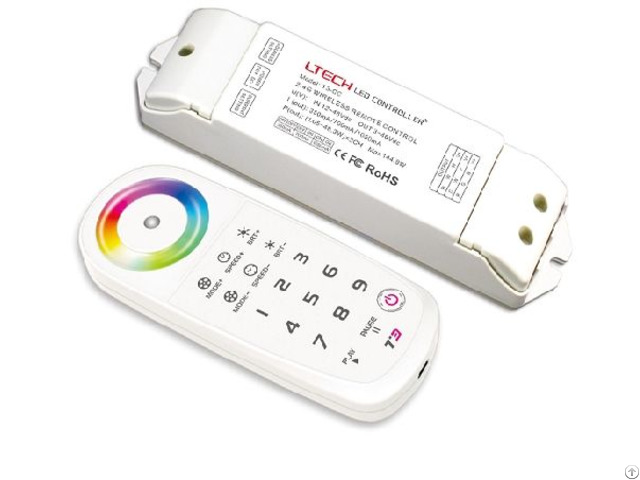

T3 Remote Control

Input voltage DC5V(Built-in Lithium battery)

Working current ≤30mA

Working frequency 2.4GHZ

transmitting distance 30m

Remote option sync control unlimited receivers

Change mode 32 Fantastic modes

Scale levels 4096×4096×4096

Battery capacity 1000mAh

Standby time ≤6 months

Dimension L145×W55×H22mm

Package Size L168×W102×H28mm

Weight (G.

W) 200g

T3-CC Receiving controller (current 3 in 1)

Input voltage DC12V-DC48V

Output voltage DC3V-DC46V

Output current CC 350/700/1050mA ×3CH

Output power 1.05W~48.3W ×3CH Max 144.9W

Compatible remote control T1/T2/T2M/T3/T3M/T3X remote control

Working temperature -30℃～55℃

Dimension L175×W44×H30(mm)

Package size L178×W48×H33mm

Weight (G.W.) 160g
