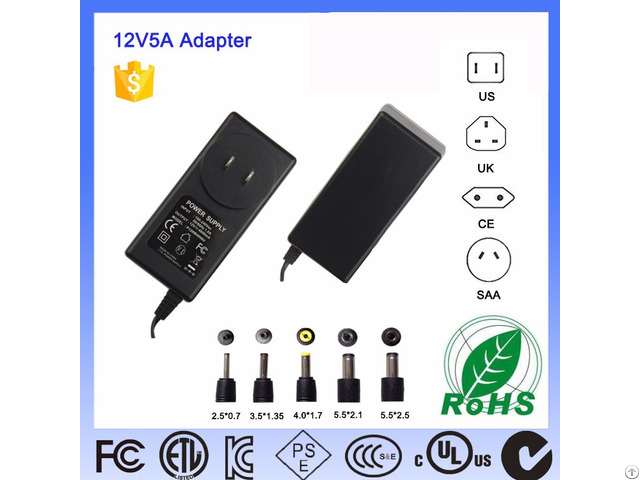

Level Vi 24v White Shell Us Plug Ac Dc Switching Power Adaptor 60w 12v Interchangeable Adapter - China

Input Voltage: 100~240V AC 50~60Hz

Input plug: Fixed / Interchangeable / Folding plug

Input current: 1.0 A Max.

Output Voltage: 5-57V (+-5% tolerance)

Output current: 0.5A-9.0A Ripple: 1% peak to peak maximum

Over voltage protection & Over current protection & Over Temperature protection & Short circuit protection.

Temperature coefficient: All out+-0.04%℃ maximum

Transient response: Maximum excursion of 4% or better on all models.

Recovering to 1% of final value within 500uS after a 25% step load change.

Operating temperature: 0℃~+40℃.

Storage temperature: -40℃~+85℃ ;.

Relative humidity: 5% to 95% non-condensing.

Setup up / Hold up / Rise time: Typical: 3000mS / 16mS / 50mS at full load.

Line regulation: +-1% maximum for any input voltage change between input voltage range

Load regulation: +-5%variations from minimum to maximum output current.

Insulation resistance: 50Mohm minimum from output to ground.

Withstand voltage: 4300VDC from input to output

Mean time between failure: 100, 000 hours minimum at full load 25℃ ambient

Energy Saving (Level VI / Level 6)

EMC requirements: FCC CLASS B, EN55022 CLASS B.

EN 55024: 1998+A1: 2001+A2: 2003; Part 15 Subpart B, IC ICES-003

Safety requirements: UL 60950-1: 2007, EN 55022: 55024/EN 60950-1/EN 61558-1/EN 61558-2-16, EN 60950-1/EN 61558-1/EN 61558-2-16/AfPS GS 214, AS/NZS 60950-1: 2011& AS/NZS 3112: 2011.

Warranty: 3- Years.
