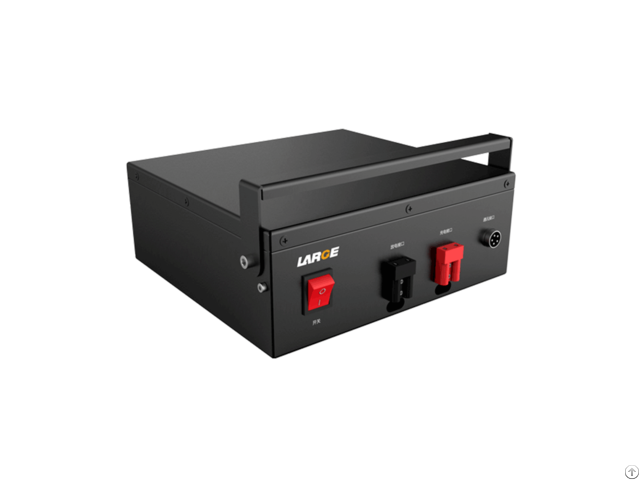

Lg 18650 25 2v 60ah Lithium Power Battery For Service Robot With Rs485 Communication Port - China

Product number: 04EQ029-06 Cell model：18650/3.6V/3.35Ah Battery specification: 18650/7S18P/25.2V/60Ah Nominal voltage：25.2V Nominal capacity：60Ah Charging voltage: 29.4V Charging current: ≤15A Discharging current: 40A Instant discharging current: 100A End-off voltage: 19.6V Internal resistance: ≤200m? Battery weight: 7.5kg Product dimension: 265×250×100(Max) Charging temperature：0～45℃ Discharging temperature: -20～50 ℃ Storage temperature: -20～40 ℃ Temperature protection: 65℃±5℃ Battery case: cold rolling and metal plate Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature protection Application field: robot, AGV, RGV.

Product features 1 - Shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2 - Large current connector: apply Anderson large current connector, which is safe and reliable.

3 - Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4 - Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5 - Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6 - The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
