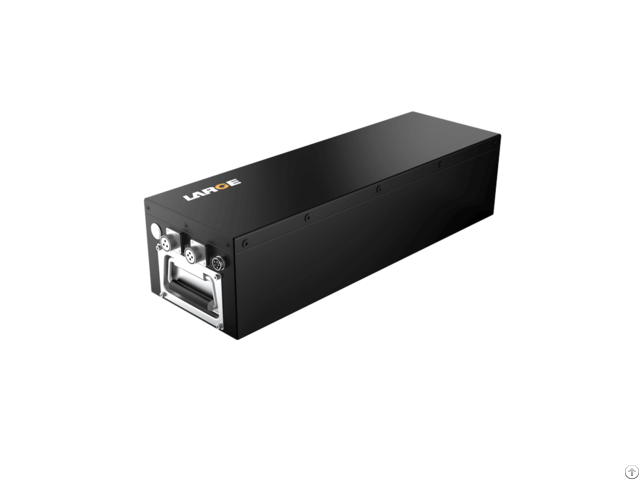

Lg 18650 46 8v 80ah Lithium Power Battery For Field Inspection Robot With Rs485 Communication Port - China

Product number: 04EQ029-09 Cell model：18650/3.6V/3.35Ah Battery specification: 18650/13S24P/46.8V/80Ah Nominal voltage：46.8V Nominal capacity：80Ah Charging voltage: 54.6V Charging current: ≤25A Discharging current: 40A Instant discharging current: 100A End-off voltage: 31.2V Internal resistance: ≤120m? Battery weight: 20kg Product dimension: 580×180×140(Max) Charging temperature：0～45℃ Discharging temperature: -20～60 ℃ Storage temperature: -20～40 ℃ Temperature protection: 65℃±5℃ Battery case: cold rolling and metal plate Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature protection.

Application field: robot, AGV, RGV Product features 1 - Shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2 - Large current: connect the batteries by copper nickel compositing with nickel strap, which is safe and reliable.

3 - Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4 - Data communication management: adopt BMS software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5 - Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6 - The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
