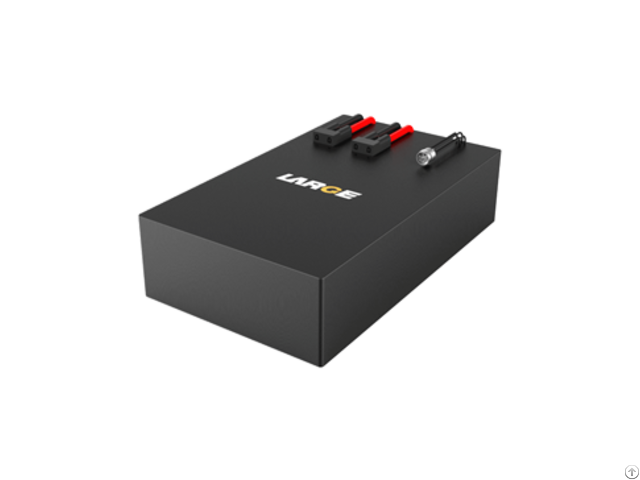

Lifepo4 Battery 26650 48v 14ah Fire Fighting Robot With Rs485 Communication Port - China

Product number: 04EQ029-01 Cell model：26650/3.2V/3.5Ah Battery specification: 26650/15S4P/48V/14Ah Nominal voltage：48V Nominal capacity：14Ah Charging voltage: 54.6V Charging current: ≤10A Discharging current: 40A Instant discharging current: 100A End-off voltage: 41.25V Internal resistance: ≤200m? Battery weight: 5.5kg Product dimension: 290×175×75(Max) Charging temperature：0～45℃ Discharging temperature: -20～60 ℃ Storage temperature: -20～40 ℃ Temperature protection: 65℃±5℃ Battery case: thermal shrinkage of PVC Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: robot, AGV, RGV Product features 1 - Copper nickel compositing with nickel strap: connect the batteries by copper nickel compositing with nickel strap, which is safe and reliable.

It assures to work through large current.

2 - Large current connector: apply Anderson large current connector, which has maximum current of 100A.

3 - Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4 - Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5 - Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6 - The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
