Linux System Luggage Scanning Machine Small X Ray Scanner For Shopping Malls - China

Small and Medium X-Ray Baggage Scanner for shopping malls, hotels, subways, church etc.

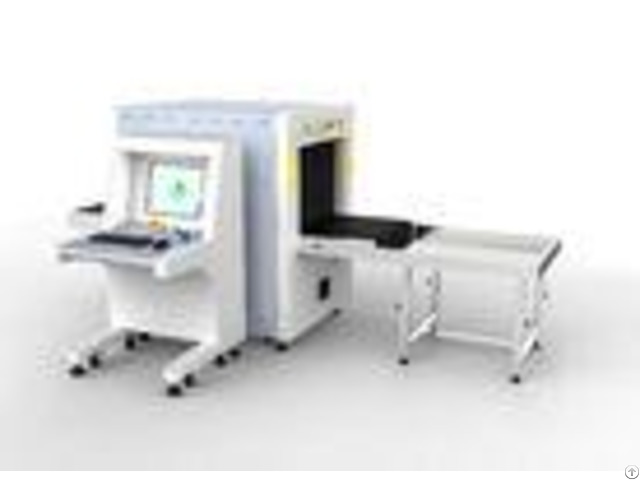

- - - - TH6550A single energy X-ray Baggage scanner, belong to our "Linux" product family, due to its competitive prices and super scanned images, it is as popular as AT5030A.

TH6550A is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination.

It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues.

| - - - - Model Number TH6550A Advantanges Comprehensive leadership: First all-digital security inspection machine of China: from signal detection to image display, all signals are transmitted and processed digitally, with strong anti-interference ability and offer high definition scanned image Unique system: with embedded Linux operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process.

Safety and environmentally friendly: The equipment meets safety and environmental standards.

Stable and reliable: The production process is strictly controlled in accordance with the IS09001 quality management system.

Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10, 000 hours without failure.

Equipment Functions Imaging process functions: Color/BW, Local Enhancement, Super Enhancement of High Penetrating Power, Enhancement of low Penetrating Power, Super Enhancement, Negative, Brightening, Darkening, Gray-Level scan, Zoom in and out, Previous/Next, Edge Enhancement.

System functions: Power-on self-test, multi-level user management, image management, TIP management, curve diagnosis, keyboard diagnosis, device information query, multi-format image export, OSD operation function, image mirroring, 1-16 times continuous magnification, magnifying glass, Operator training, accurate positioning of package images, empty channel reminders, remote operation software, one-button shutdown, and intelligent roller engine (optional).

Parameters - - - - - - - - Model Number | TH6550A | Conveyor Speed | 0.22m/s | Max.

Load | 150kg | Sizes without table | 2195mm*902mm*1362.5mm(L*W *H) | Unit weight | 420KG | Penetration | More than 11mm steel | Wire resolution | 0.0787mm wire | Penetration resolution | 0.127mm wire | Spatial resolution | Vertical: 1.0mm, Horizontal: 1.0mm | X-ray dosage /scan | Less than 1Gy | Boundary leakage | Less than 0.3Gy/h | X-Ray generator | Anode voltage: 80KV, 100% oil cooling | Operation temperature/Humidity | 5400%90% | Operating system | Linux | Power supply | AC220V+10%~-15%, 50Hz3Hz | Power consumption | 0.8KW | - - - - | - - - - Below are the scanned images for Safeway X-Ray Baggage Scanners
